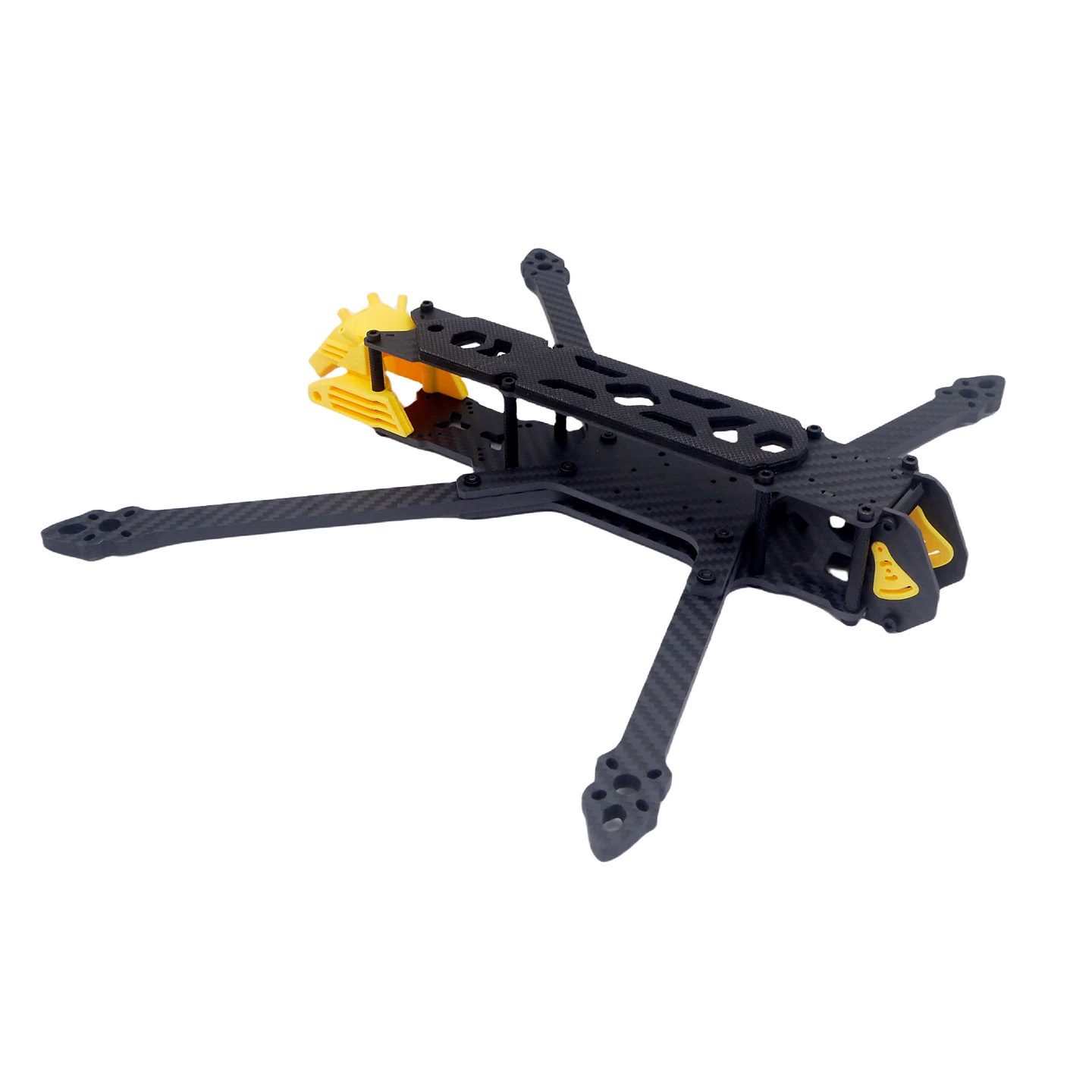

Pumpkin 7" is a carbon frame for 7" long-range copters with a motor diagonal distance of 300 mm. The frame is compatible with both analog and digital video transmission including DJI O4 Pro. The frame can accommodate cameras sized 19-20 mm. The camera is protected by carbon side panels, which secure it through a rubber insert that helps dampen vibrations. In the central part of the frame, there are mounting holes for stack installation with a pitch of 30.5×30.5 mm M3, 25.5×25.5 mm M2, and 20×20 mm M2. At the rear of the frame, there are similar mounting holes for attaching the video transmitter. The frame can accommodate motors with hole spacing of 16 and 19 mm. The arms are made of 6 mm thick T700 carbon, the bottom and middle plates are 3 mm, and the top plate is 2 mm.
Key Features
- Motor diagonal distance: 300mm
- Maximum propeller size: 7"
- Arm thickness: 6 mm
- Bottom plate thickness: 3 mm
- Middle plate thickness: 3 mm
- Top plate thickness: 2 mm
- Camera side panels: 2 mm
- Camera width: 20 mm / 19 mm
- Mounting holes for stack: 30.5×30.5 mm M3 / 25.5×25.5 mm M2 / 20×20 mm M2
- Mounting holes for VTX: 30.5×30.5 mm M3 / 25.5×25.5 mm M2 / 20×20 mm M2
- Mounting holes for motors: 16/19 mm M3
- Size: 230x278x50mm
Package Includes
- 1× Frame
- 1× Set of 3D printed parts
