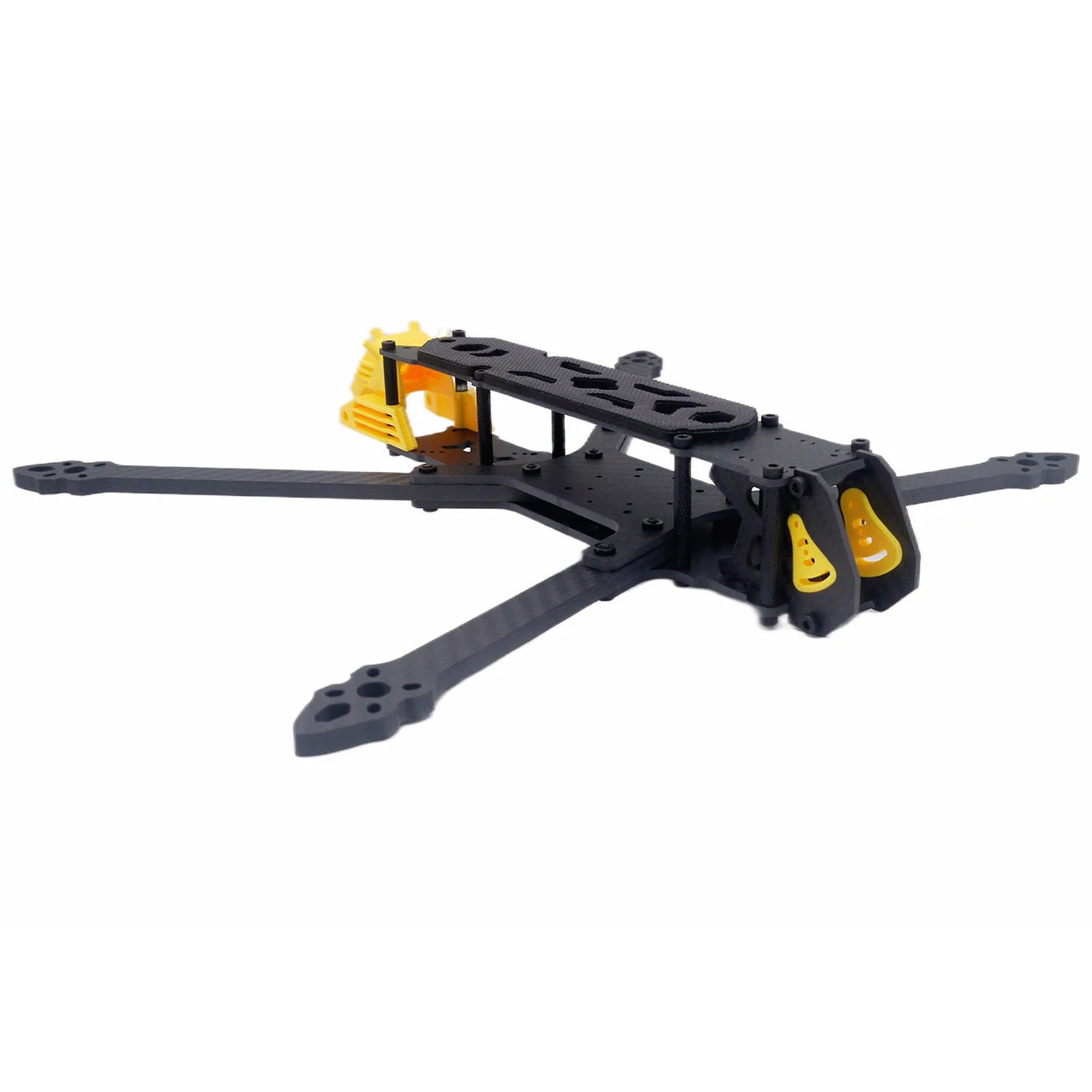

Pumpkin 10" is a carbon frame for 10" long-range copters with a diagonal motor spacing of 411 mm. The frame is compatible with both analog and digital video transmission, including DJI O4 Pro. It accommodates cameras sized 19-20 mm. The camera is protected by carbon side panels, which hold it via a rubber insert that helps dampen vibrations. In the middle section of the frame, there are mounting holes for stack installation with spacings of 30.5×30.5 mm M3, 25.5×25.5 mm M2, and 20×20 mm M2. At the rear of the frame, there are similar mounting holes for securing the video transmitter. The frame accommodates motors with a hole spacing of 19 mm. The arms are made of 6 mm thick T700 carbon, the bottom and middle plates are 3 mm, and the top plate is 2 mm.
Key Features
- Diagonal motor distance: 411 mm
- Maximum propeller size: 10"
- Arm thickness: 6 mm
- Bottom plate thickness: 3 mm
- Middle plate thickness: 3 mm
- Top plate thickness: 2 mm
- Camera carbon side panels: 2 mm
- Camera width: 20 mm / 19 mm
- Mounting holes for stack: 30.5×30.5 mm M3 / 25.5×25.5 mm M2 / 20×20 mm M2
- Mounting holes for VTX: 30.5×30.5 mm M3 / 25.5×25.5 mm M2 / 20×20 mm M2
- Mounting holes for motors: 19 mm M3
- Size: 296x371x50mm
Package Includes
- 1× Frame
- 1× Set of 3D printed parts
