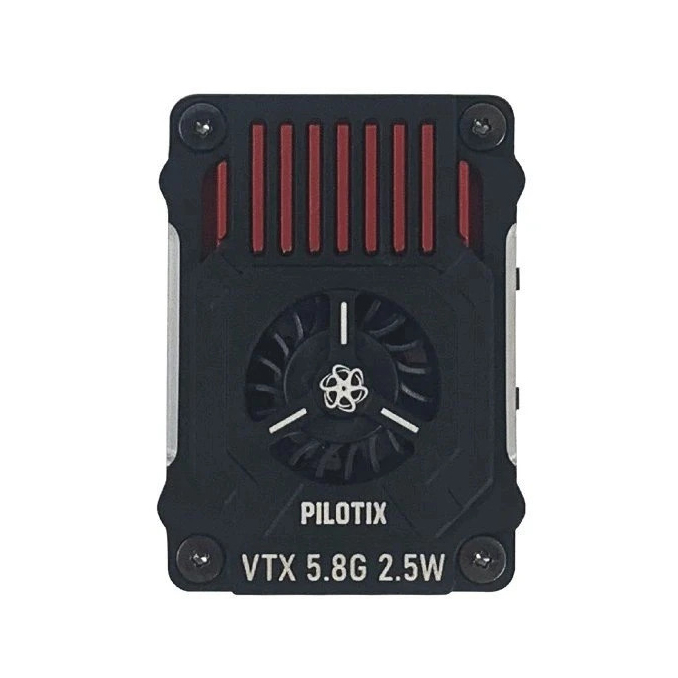

Pilotix R2500 25-2500mW
Pilotix R2500 5.8G 2.5W is an analog video transmitter with output up to 2.5 W, suitable especially for long-range drones that require long range.
R2500 operates in the 5.8 GHz band and offers 48 channels. The video transmitter is housed in an aluminum body that helps dissipate heat. The transmitter includes an integrated fan for active cooling. Channel, band and power settings are adjusted using buttons directly on the board or via the flight controller using the IRC Tramp protocol. The current status is shown by a tri-color LED indicator. Power can be switched between PIT / 25 / 400 / 800 / 1500 / 2500 mW. The video transmitter is equipped with a built-in microphone for audio transmission.
Input voltage 7–36 V (2–8S) allows powering directly from the drone battery. The video transmitter is equipped with a 5 V BEC, which is used to power the FPV camera. The antenna connects via an MMCX connector.
Key Features
- Input voltage: 7–36 V (2–8S)
- Output power: PIT / 25 / 400 / 800 / 1500 / 2500 mW
- Aluminum construction with active cooling
- BEC: 5 V
- Number of channels: 48
- Communication protocol: IRC Tramp
- Antenna connector: MMCX
- Mounting holes: 25.5 x 25.5 mm M2 thread
- Integrated microphone
- Dimensions: 39.2 x 29 x 12 mm
- Weight: 16.5 g
User Guides
Package Includes
- 1x Video transmitter
- 1x MMCX antenna 70 mm
- 1x MMCX-SMA Pigtail 150 mm
- 1x SH1.0 6 pin cable for connection to the flight controller
