Pilotix R1600 25-1600mW

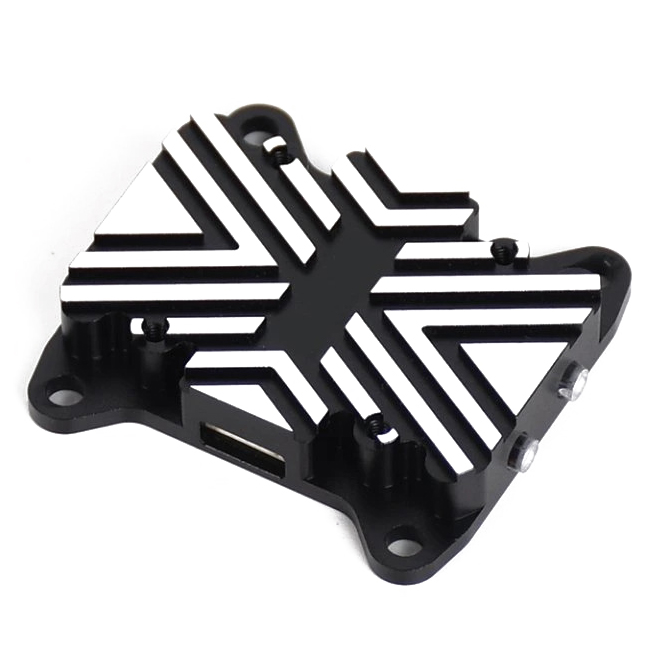

Pilotix R1600 is an analog video transmitter with a maximum output of up to 1600 mW. The video transmitter is therefore especially suitable for freestyle and long-range drones, where long signal range is needed. The video transmitter is enclosed in an aluminum heatsink, which helps dissipate heat while also protecting sensitive components from dirt.

Power can be switched as needed between 25/400/800/1000/1600 mW. The transmitter operates in the 5.8 GHz band on 40 channels. Video transmitter settings can be adjusted via a pair of buttons or through the flight controller using the IRC Tramp protocol. Pilotix R1600 can be powered directly from a 2-6S battery, and there is also a 9V/780 mA output for powering an FPV camera. The antenna is connected via an MMCX connector.

For easy frame installation, the R1600 has mounting holes with 30.5 x 30.5 mm and 20 x 20 mm threaded spacing.

VTX table
