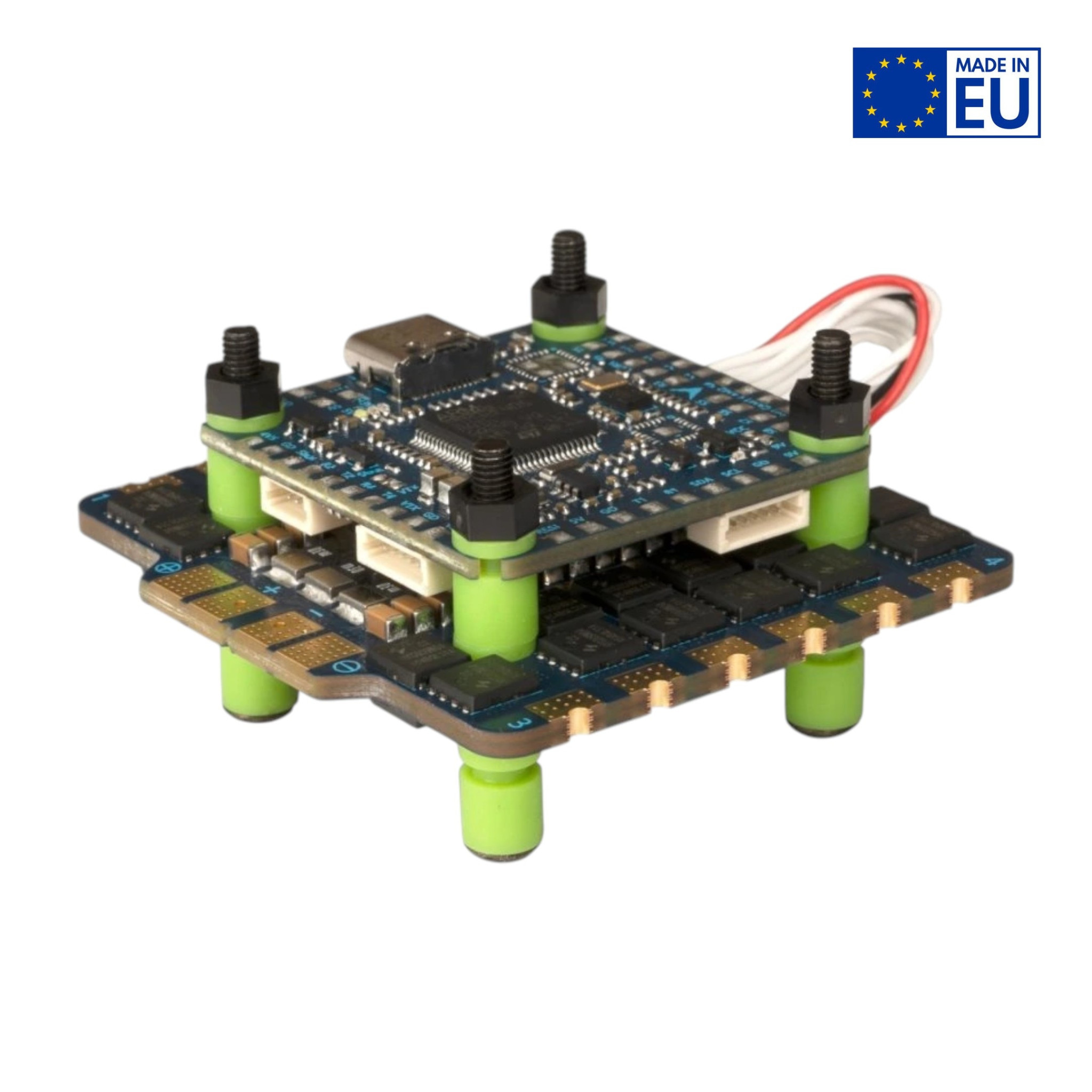

Pilotix F405 V3 + 80A AM32

Pilotix F405 V3 AM32 80A is a combination of a flight controller and ESCs suitable for powerful 5" - 6" freestyle drones, as well as heavier 10" - 15" long-range drones powered by 3-8S LiPo. The stack is made in the CZ and complies with the NDAA.

The flight controller uses an STM32F405 processor combined with an ICM42688-P gyroscope. It features analog OSD, an integrated SPL06 barometer, and 16MB of Blackbox memory. The board offers 5 UARTs, an I2C pad for connecting a compass, and solder pads for an LED strip. Peripheral power is provided by a 5V/2.5A and 9V/2.5A BEC for powering the video transmitter. The flight controller has two camera inputs, between which you can switch in flight. The board is equipped with connectors for easy connection of other components without soldering, while still retaining the option to use solder pads.

The ESC uses AM32 firmware with support for bidirectional DShot and telemetry. It can handle a continuous current of up to 80A and features a current sensor. The ESC has a pair of pads for connecting power leads, making it easy to connect two parallel batteries.
