Pilotix F405 V3 + 60A Bluejay

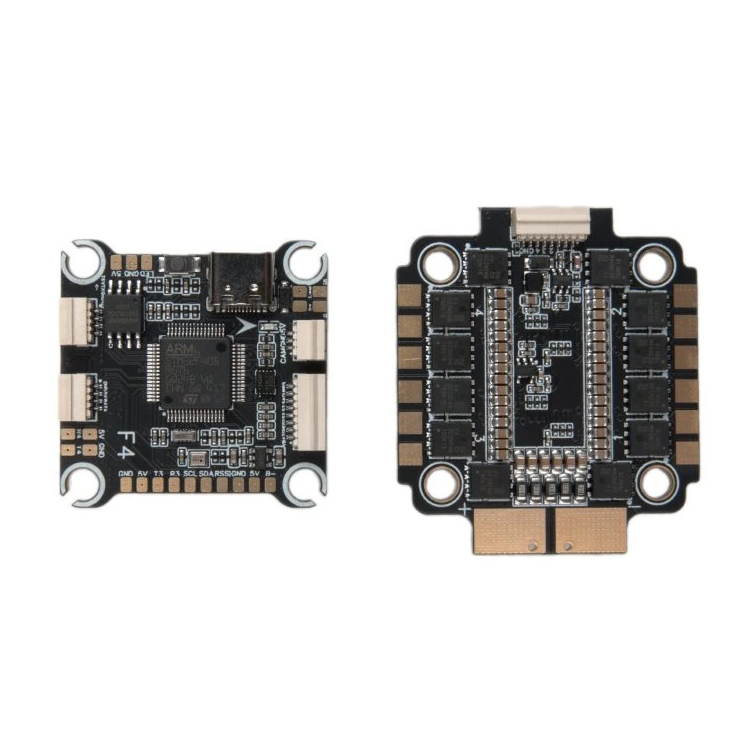

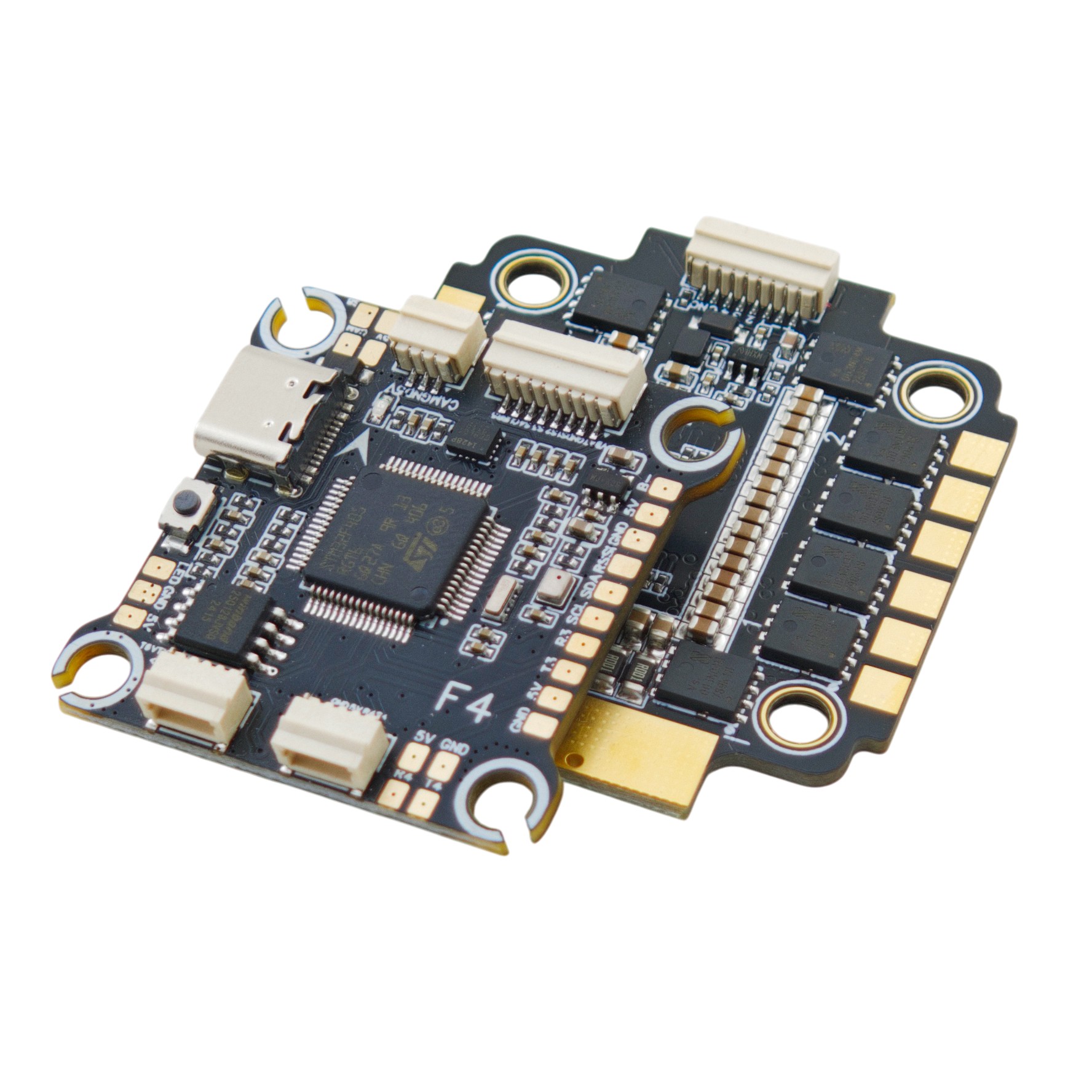

Pilotix F405 V3 + 60A Bluejay is an affordable stack that combines a flight controller and ESC. It is suitable for powerful 5" freestyle and racing drones as well as 7" long range aircraft powered by 3-6S LiPo batteries.

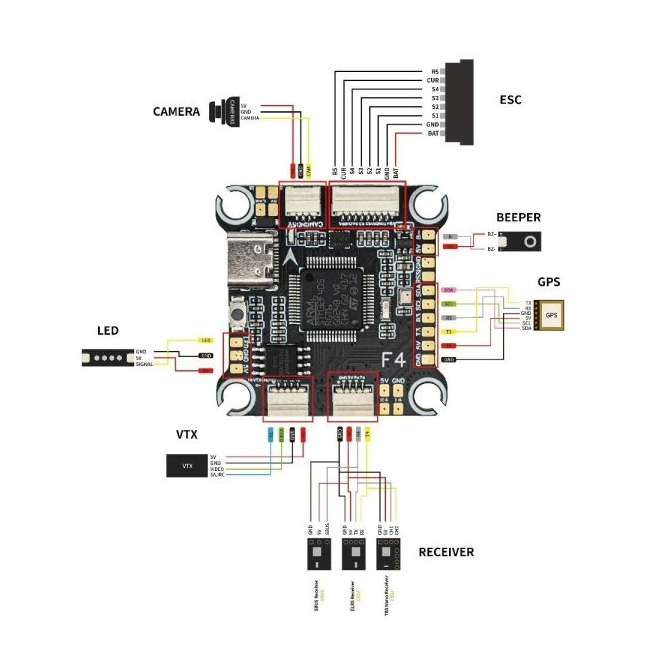

The flight controller uses an STM32F405 processor combined with an ICM42688P gyroscope. It offers 16MB of blackbox memory, an integrated barometer, and 5V/3A and 12V/2A BEC. The board provides 5 UARTs, 8 motor outputs, analog OSD, and a DJI connector, so it can be used with both analog and digital video transmission. I2C pads are also available for connecting a compass on GPS modules.
The ESC can handle continuous current up to 60A. It uses the 8-bit Bluejay firmware (JH-30), which supports bidirectional DShot and RPM filtering. The ESC is equipped with a protective TVS diode and current sensor.
Key Features
- Input voltage: 3-6S LiPo
- MCU: STM32F405RGT6
- Gyro: ICM42688P
- Barometer: SPL06
- OSD: AT7456E
- Blackbox memory: 16MB
- I2C pads: Yes
- Number of UARTs: 5
- Number of motor outputs: 8
- BEC: 5V/3A + 12V/2A
- FC firmware: Betaflight
- FC dimensions: 37x37 mm
- FC weight: 7,8 g
- ESC current: 60A
- ESC firmware: Bluejay JH-30
- Current sensor: Yes
- TVS diode: Yes
- ESC dimensions: 48x42 mm
- ESC weight: 13,5 g
- Mounting holes: 30,5x30,5 mm
Package Includes
- 1x FC
- 1x ESC
- 1x connection cable (8pin)
- 1x 35V 1000uF capacitor
- 1x set of softmounts
