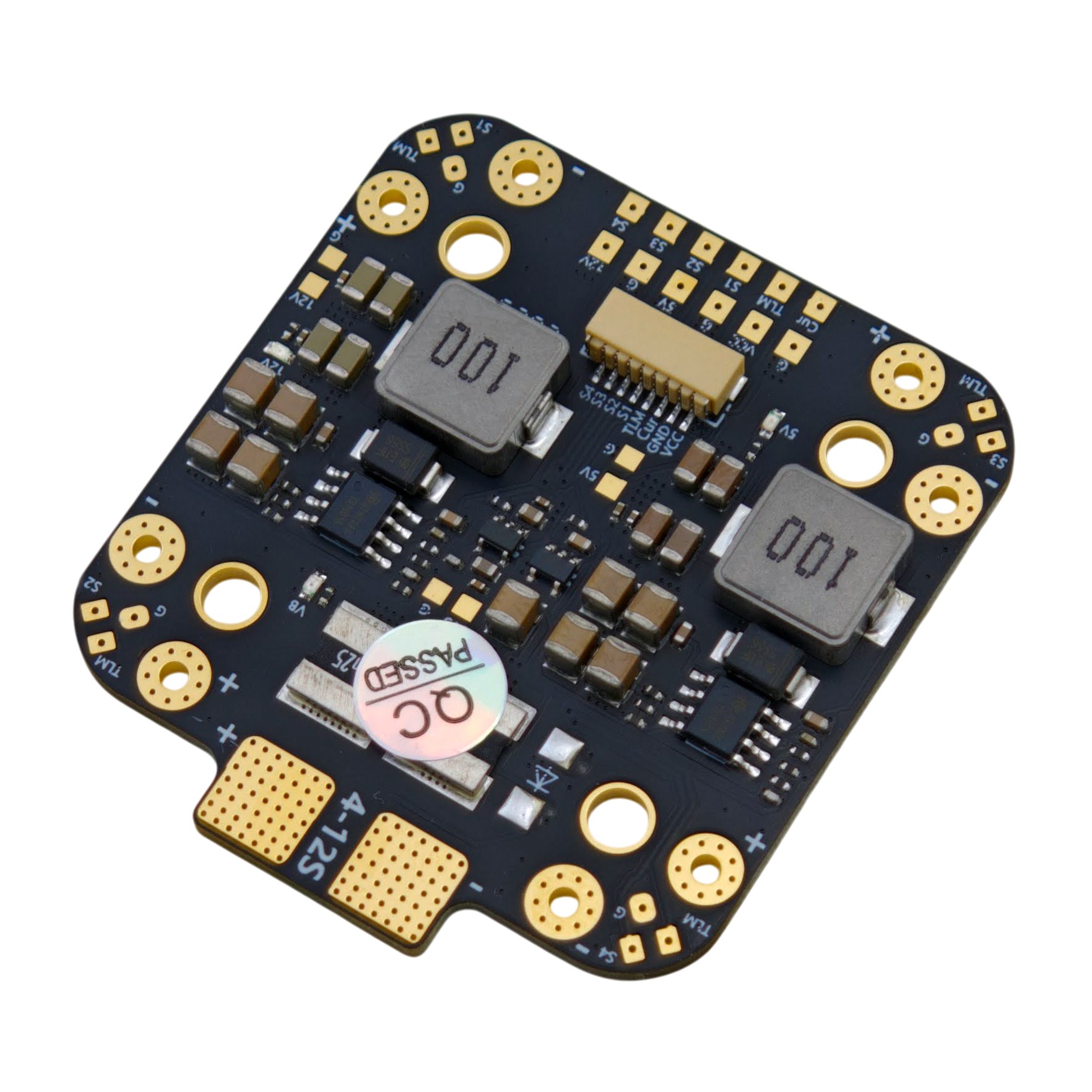

Pilotix PDB400 V2 12S is a battery power distribution board. The board is intended primarily for larger and more powerful drones that use separate ESCs. It supports 4-12S batteries and can handle a continuous current of 4x 100A (400A total). The PDB features a current sensor, 12V/4A BEC, 5V/5A BEC. Each ESC also has a pad for the signal and telemetry wire. An 8-pin connector is included for easy connection to the flight controller.
The PDB has standard mounting holes 30,5x30,5 mm M4 (M3 with softmount).
Key Features
- Input voltage: 4-12S LiPo
- Number of ESC outputs: 4x
- Maximum current: 4x 100A
- BEC: 5V/5A, 12V/5A
- Current sensor: Yes
- Mounting holes: 30,5x30,5 mm
- Dimensions: 50 x 55 x 5,6 mm
- Weight: 24 g
Package Includes
- 1x PDB400 V2 12S
- 1x XT90 connector with cables
- 1x accessory set
