Pilotix Rocky 10 SE

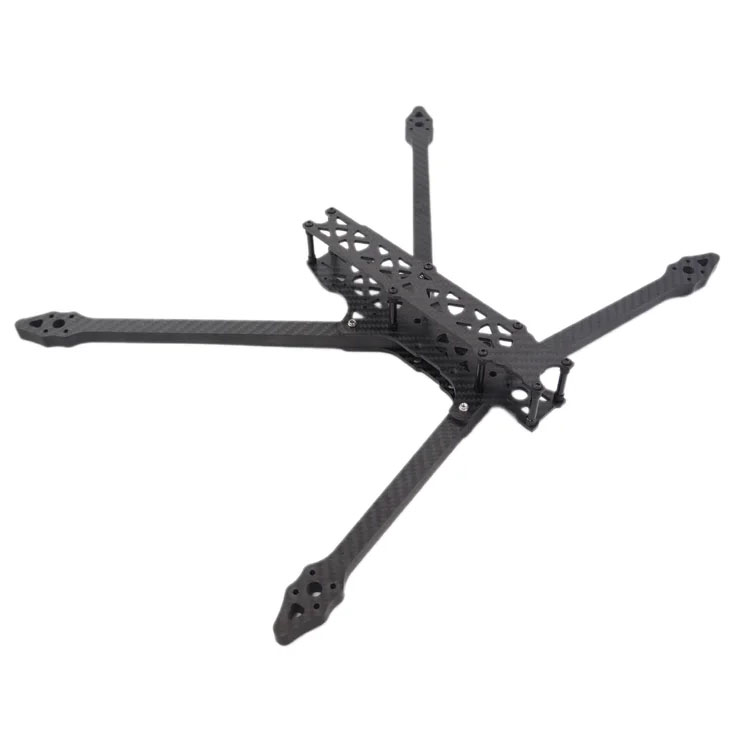

Pilotix Rocky 10 SE is a carbon frame suitable for building a large 10" long-range quadcopter. The frame uses a Deadcat arm configuration, where the front arms are shifted further outward, so the FPV camera does not see the distracting edges of the propellers.

The frame is designed for motors with a 19 mm M3 mounting pattern and propellers up to 10". The frame has a diagonal motor distance of 425 mm and arms made of 10 mm thick carbon, which provide high rigidity and durability. The bottom and middle plates are made of 3 mm carbon, and the top plate is 2,5 mm. Mounting holes with a spacing of 30,5 x 30,5 mm M3 are prepared for the stack. The FPV camera is mounted in a 3D printed holder that slides onto the standoffs. The frame also includes a 3D printed holder for Micro size cameras (19 mm). In the rear part of the drone there is space for mounting a video transmitter. Mounting holes with a spacing of 30,5 × 30,5 mm M3 and 20 × 20 mm M2 are prepared for the video transmitter. The overall dimensions of the frame are 402 x 316 x 49 mm and the weight is 303 g.
