Pilotix PT10 V2

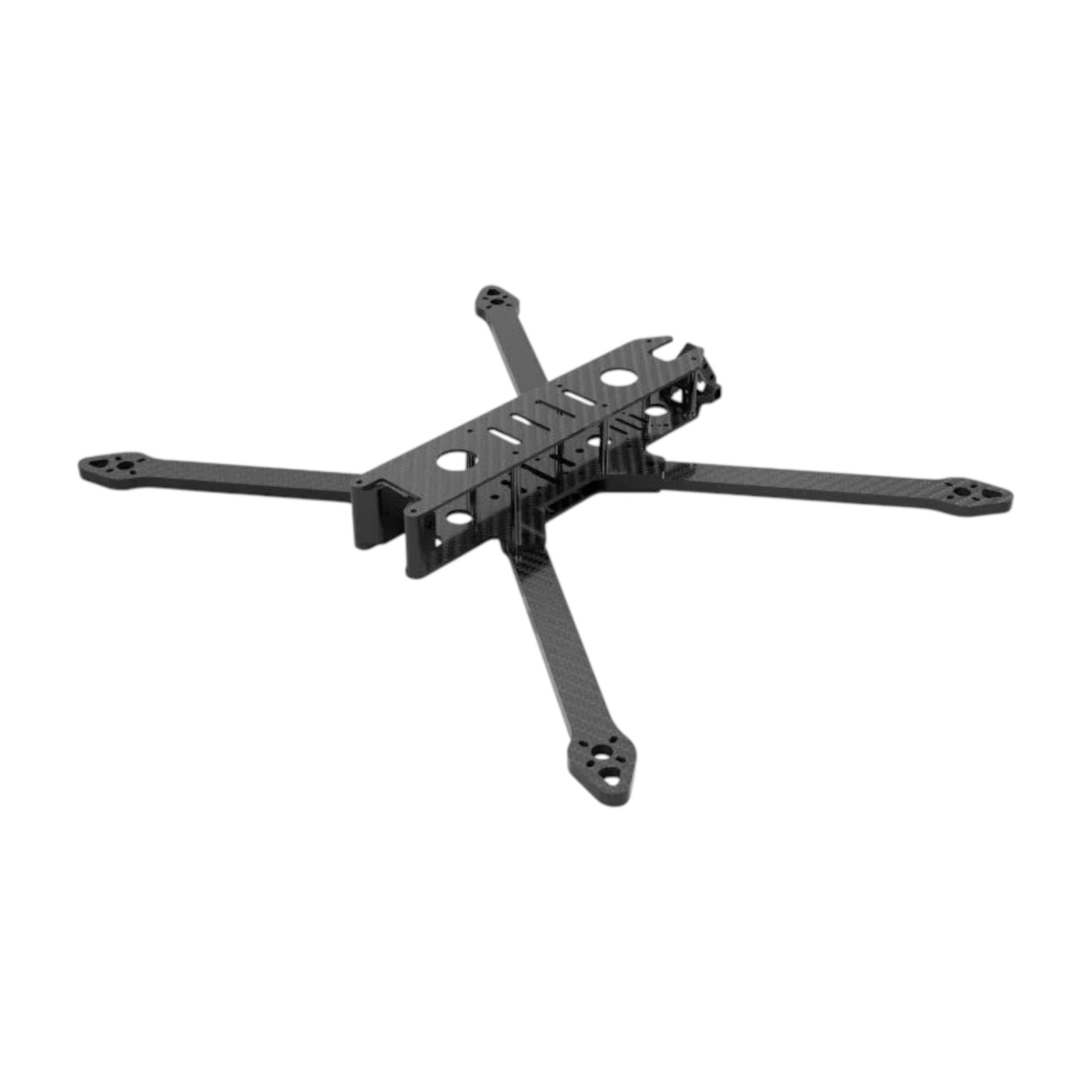

Pilotix PT10 V2 is a carbon frame suitable for building a large 10" long-range quadcopter. The frame has an X arm configuration, which provides high rigidity and durability.

The frame is designed for motors with mounting holes  19 mm M3 and propellers up to 10". The frame has a diagonal motor wheelbase of 425 mm and arms made of 7 mm thick carbon. The bottom and middle plate are made of 3 mm carbon. The top plate is made of 2 mm carbon. The stack mounting holes are prepared with a spacing of 30,5 x 30,5 mm M3. The FPV camera is mounted in a 3D printed holder that slides onto the standoffs. The frame includes a 3D printed holder for mounting a Micro-size camera. There is enough space between the standoffs to fit even larger cameras, including DJI O4 Pro. In the rear part of the drone there is space for mounting a video transmitter. The video transmitter mounting holes are prepared with a spacing of 30,5 × 30,5 mm M3, 25,5 x 25,5mm M2 and 20 × 20 mm M2. The frame weight is 310 g.
