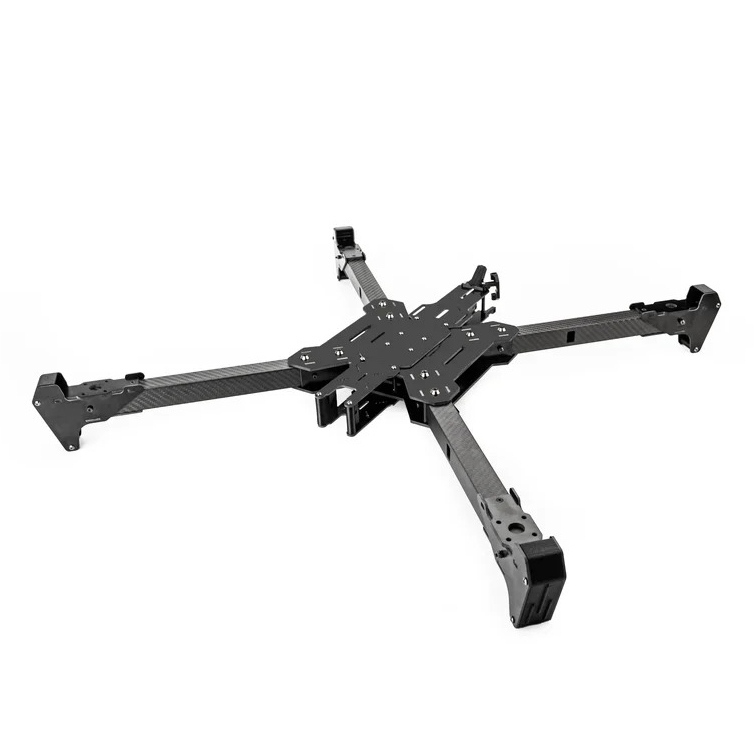

Pilotix Rocky PT15 is a 15" frame suitable for building a large heavy lift drone. The diagonal motor spacing is 670 mm. The arms are made of square carbon tubes measuring 25 × 25 mm, which are attached to the frame body using side locks.
The bottom and top plates are made of 3.5 mm thick fiberglass. In the center of the frame there is space for a stack with mounting holes of 30.5 x 30.5 mm. In the rear section of the frame there is space for mounting a video transmitter. For easy installation, mounting holes with a spacing of 30.5 x 30.5 mm (M3), 25.5 x 25.5 mm (M2), and 20 x 20 mm (M2) are available. In the front section there are the same mounting holes and additionally a spacing of 40 x 40 mm (M2) for mounting AI boxes of some FPV cameras. The frame includes a 3D printed mount for attaching a Micro-size camera. There is enough space between the standoffs for larger cameras, including the DJI O4 Pro.
The overall frame dimensions are 578 x 578 x 90 mm. The frame includes a 3D printed SMA connector mount, ELRS antenna mount, and 4x Lipo strap.
Key Features
- Diagonal motor distance: 670 mm
- Maximum propeller size: 15"
- Arms: 25 x 25 mm square carbon tube
- Bottom plate thickness: 3.5 mm
- Top plate thickness: 3.5 mm
- Supported camera width: 19 mm Micro, space for DJI O4 Pro as well
- Stack mounting holes: 30.5 x 30.5 mm
- Motor mounting holes: 30 mm M4
- VTX mounting holes: 30.5 x 30.5 mm (M3) / 25.5 x 25.5 mm (M2) / 20 x 20 mm (M2)
- Front mounting holes: 40 x 40 mm (M2) / 30.5 x 30.5 mm (M3) / 25.5 x 25.5 mm (M2) / 20 x 20 mm (M2)
- Size: 578 x 578 x 90 mm
- Weight: 1.3 kg
Package Includes
- 1x Pilotix PT15 frame
- 1x set of aluminum standoffs
- 1x set of screws
- 1x set of nuts
- 1x set of 3D printed parts
- 1x battery pad
- 4x Lipo strap
