Pilotix PT10 V3

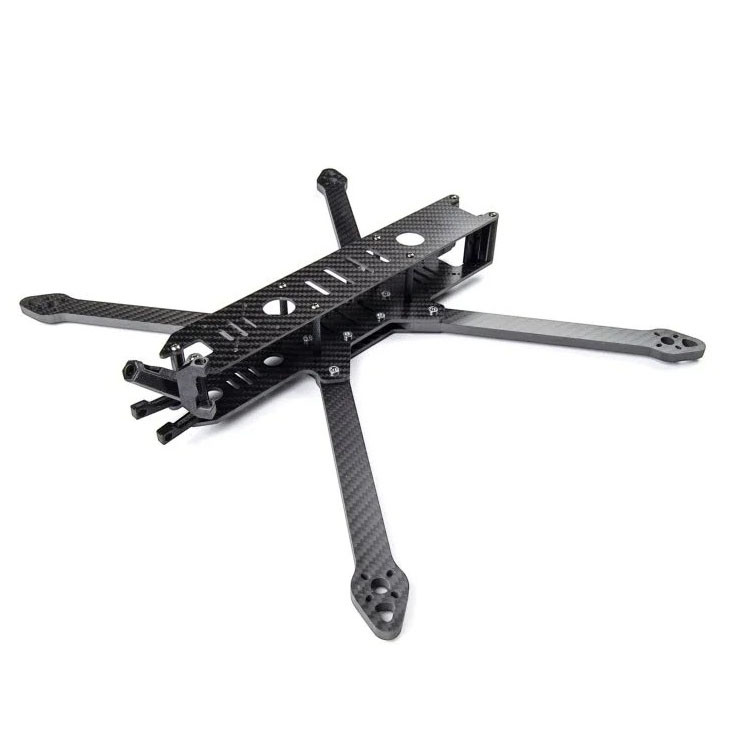

Pilotix PT10 V3 is a carbon frame suitable for building a large 10" long-range quadcopter. The frame has an X arm configuration, which gives the frame high rigidity and durability.

The frame is designed for motors with a 19 mm M3 mounting pattern and propellers up to 10". The frame has a diagonal motor spacing of 427 mm and arms made of 7 mm thick carbon. The bottom and middle plates are made of 3 mm carbon, the top plate of 2 mm. Stack mounting holes with 30,5 x 30,5 mm M3 spacing are prepared. The FPV camera is mounted in a 3D printed holder that slides onto the standoffs. The frame includes a 3D printed holder for mounting a Micro-size camera. There is enough space between the standoffs for larger cameras, including the DJI O4 Pro. The rear part of the drone provides space for mounting a video transmitter. Mounting holes for the video transmitter are prepared with 30,5 × 30,5 mm M3, 25,5 x 25,5mm M2 and 20 × 20 mm M2 spacing. The frame weight is 373 g.
