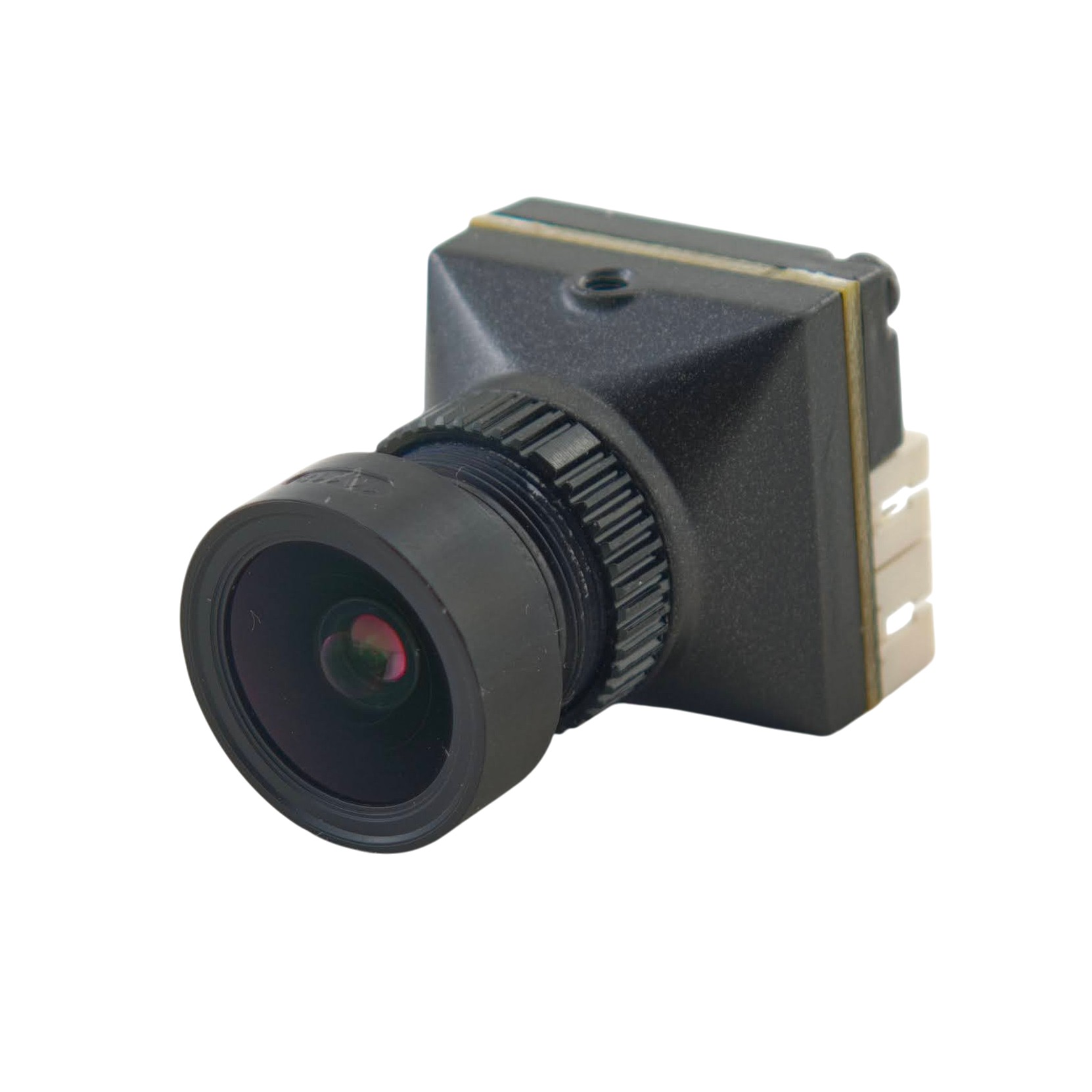

Pilotix P6 Pro is an analog camera in micro size (19 mm), suitable for freestyle and long-range drones.
The camera uses a Sony 1/2.9" CMOS sensor and offers 1800 TVL resolution. The camera has a 16:9 aspect ratio and PAL standard. The camera is equipped with a lens with a focal length of 2.8 mm and a field of view of 95° horizontal / 53° vertical. The camera can be powered within a range of 5-40V, but we recommend powering it from the flight controller's 5V BEC.
The camera configuration button is not included in the package.
Key Features
- Input voltage: 5-40 V
- Sensor: Sony 1/2.9" CMOS
- Resolution: 1800 TVL
- Aspect ratio: 16:9
- Standard: PAL
- Light sensitivity: 0.01 Lux
- Lens: 2.8 mm / F1.0
- FOV: H95° / V53°
- Power consumption: 40 mA@12V
- Dimensions: 27 x 19 x 19 mm
- Weight: 9 g
User Guides
Package Includes
- 1x Camera
- 1x Connection cable (150 mm)
