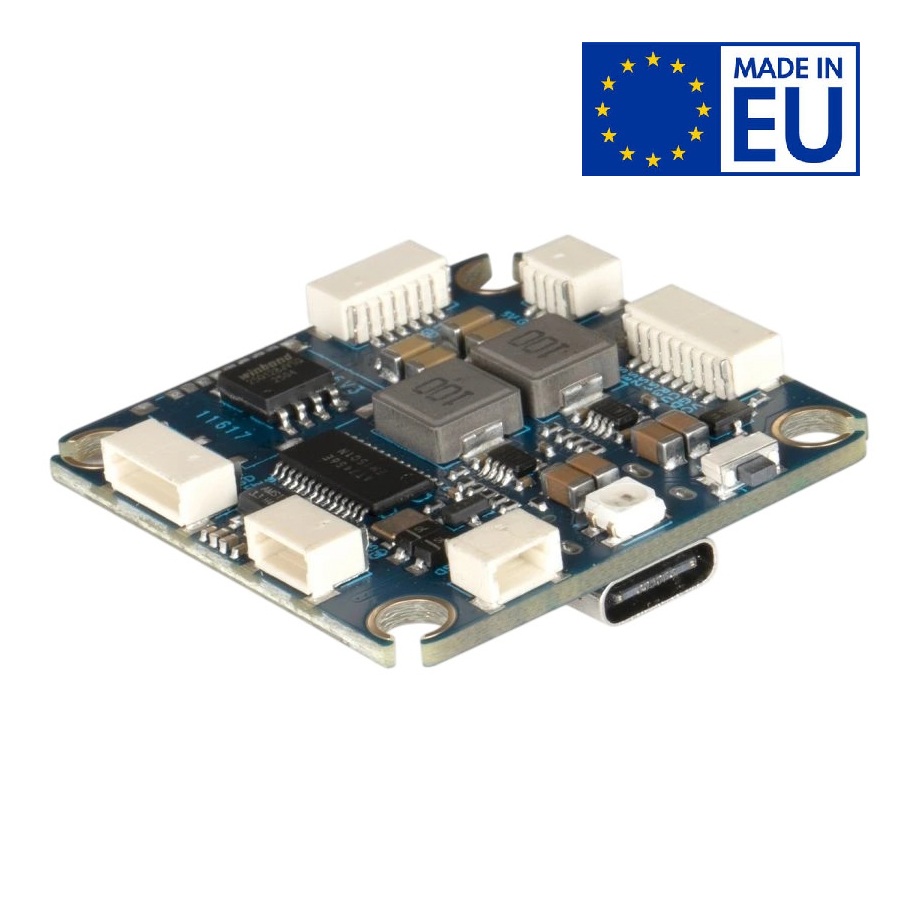

Pilotix F405 V3

Pilotix F405 V3 is a flight controller suitable for powerful 5" - 6" freestyle drones, as well as heavier 10" - 15" long-range drones powered by 3-6S LiPo. The flight controller is made in the CZ and complies with NDAA.

The flight controller uses an STM32F405 processor combined with an ICM42688-P gyroscope. It features analog OSD, an integrated SPL06 barometer, and 16MB of Blackbox memory. The board offers 5 UARTs, an I2C pad for connecting a compass, and solder pads for an LED strip. Peripheral power is provided by BEC 5V/2.5A and 9V/2.5A for powering the video transmitter. The flight controller has two camera inputs that can be switched between in flight. The board is equipped with connectors for easy connection of other components without soldering, while still retaining the option to use solder pads.
