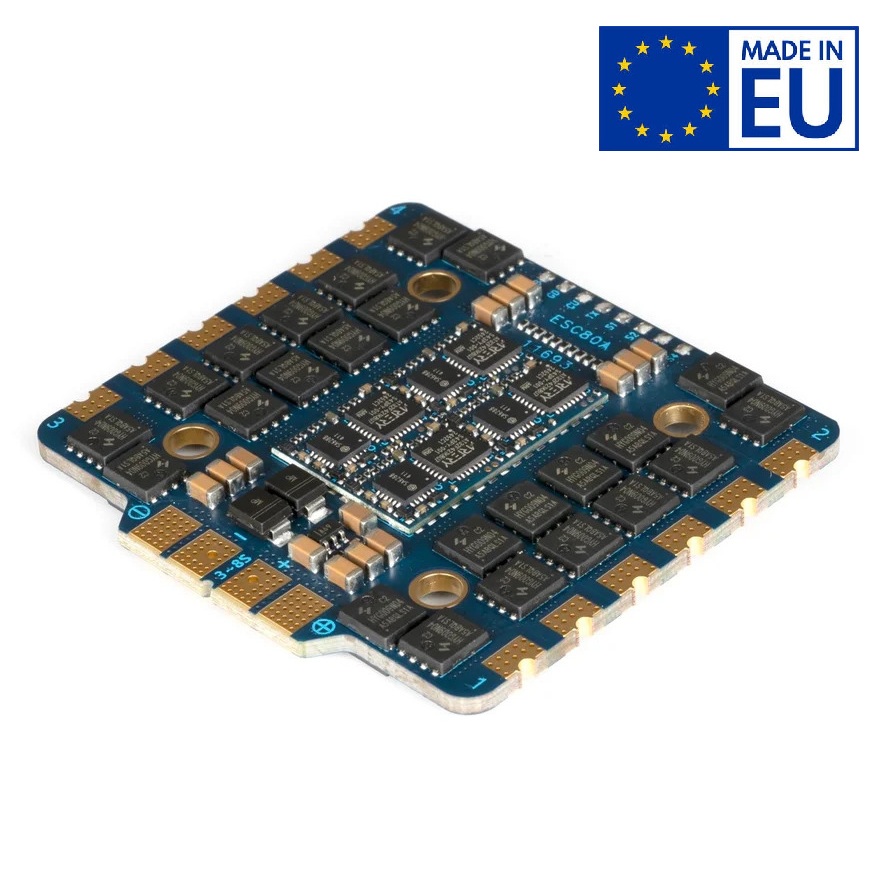

Pilotix AM32 80A is a 4in1 ESC suitable for powerful 5" - 6" freestyle drones, as well as heavier 10" - 15" long-range drones powered by 3-8S LiPo. The ESC is manufactured in the Czech Republic and complies with NDAA.
The ESC uses AM32 firmware with support for bidirectional DShot and telemetry. It can handle continuous current up to 80A and features a current sensor. The ESC has a pair of pads for connecting the power leads, making it easy to connect two parallel batteries.
Key Features
- Input voltage: 3-8S LiPo
- MCU ESC: AT32F421K8U7
- ESC firmware: AM32
- Continuous current: 4x 80A
- Current sensor: Yes
- Telemetry: Yes
- ESC dimensions: 55x52 mm
- Mounting holes: 30,5x30,5 mm M3
- Weight: 33 g
Package Includes
- 1x ESC
- 1x Accessory set
