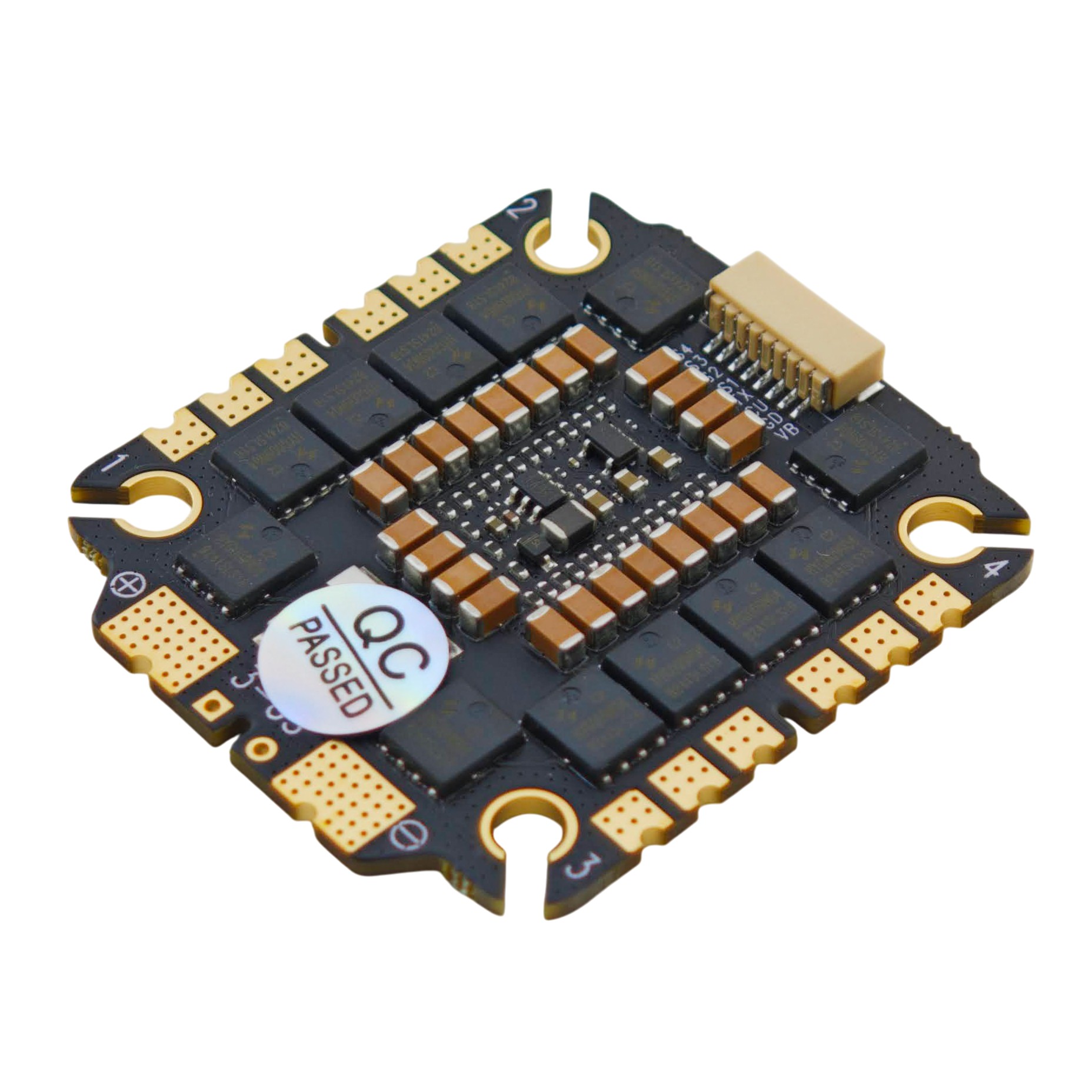

Pilotix 65A AM32 is a 4-in-1 ESC suitable for powerful 5" freestyle and racing drones, as well as 7" - 10" long range builds. It can handle a continuous current of up to 65A per channel and supports 3-8S Lipo batteries.
Control is handled by a 32-bit AT32F421K8U7 processor with AM32 firmware. The ESC supports bidirectional DShot, telemetry and adjustable PWM frequency. The ESC also features a current sensor and TVS protection diode.
Connection to the flight controller is via an 8-pin connector, and solder pads are also available on the bottom side of the ESC. Mounting holes with 30,5x30,5mm spacing (M3) allow installation in standard frames.
Key Features
- Input voltage: 3-8S Lipo
- Processor: AT32F421K8U7 (32-bit)
- Firmware: AM32
- Continuous current: 75A per channel
- Input protocol: DShot150/300/600, Multishot, OneShot
- Telemetry: Yes
- Current sensor: Yes
- TVS protection diode: Yes
- Mounting holes: 30,5x30,5mm (M3)
- Size: 44,5x40,5mm
- Weight: 16,7g
User Guides
Package Includes
- 1x ESC
- 4x Soft mount
- 1x FC connection cable (JST-SH 1.0, 8-pin)
- 4x Screws
- 4x Nuts
- 1x XT60 power cable
- 1x 1000µF/35V capacitor
- 1x Heat shrink tubing
