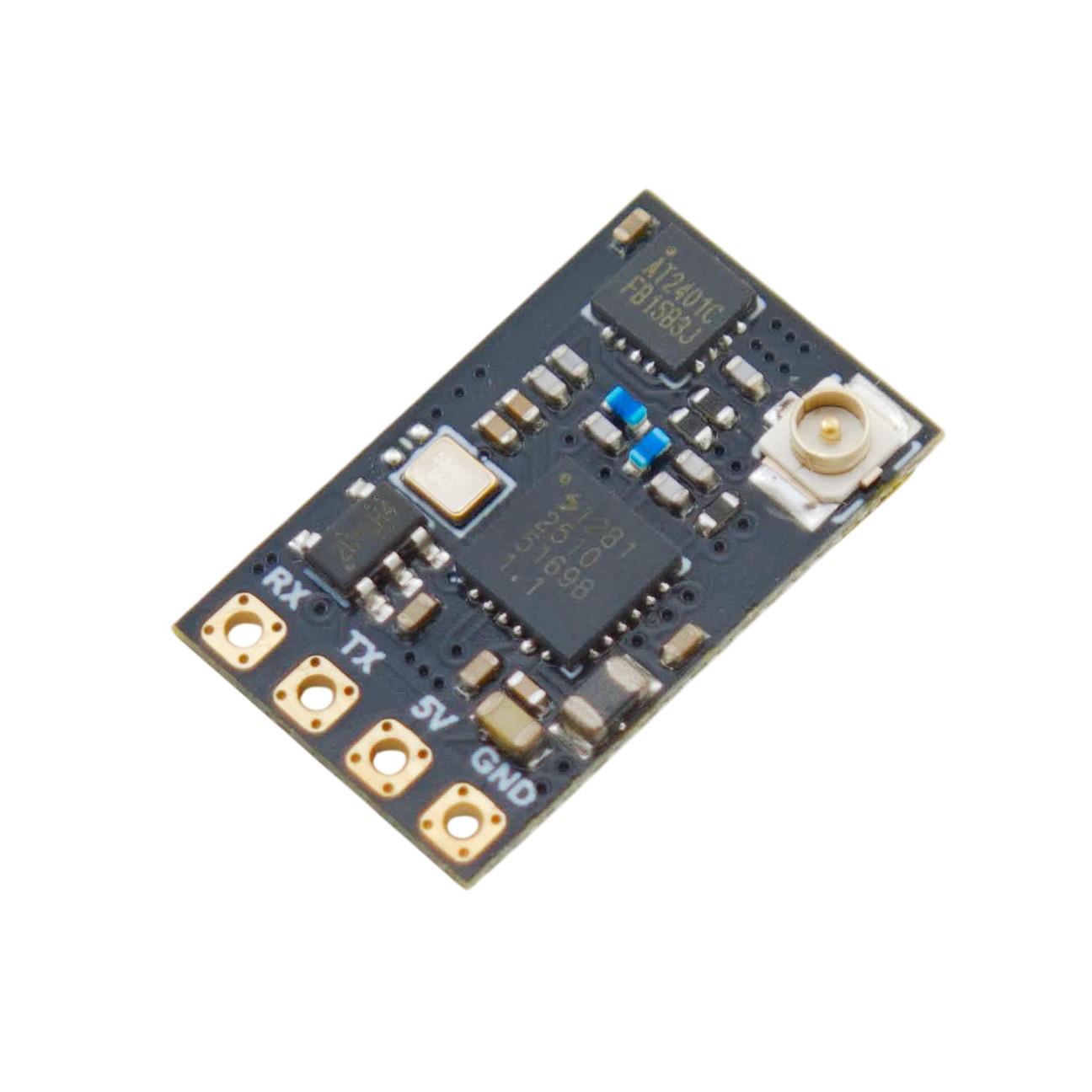

Pilotix ELRS 2.4G Nano is a small receiver with a good price/performance ratio. The receiver is designed for the ExpressLRS system on the 2.4GHz frequency, suitable for freestyle and racing drones where every gram counts. It is built on ESP8285 (MCU) and SX1281 (RF) chips and offers telemetry power up to 100mW. Included in the package is a T antenna with a total length of 65mm and an IPEX1 connector.
Key Features
- MCU: ESP8285
- RF chip: SX1281
- Antenna connector: IPEX1
- Frequency band: 2.4GHz
- Telemetry power: 100mW (20dBm)
- Size: 11x18x3mm
- Input voltage: 5V
- Weight: 0.6g without antenna
Package Includes
- 1x Receiver
- 1x 65mm T-antenna
- 2x Heat shrink tubing
- 1x Connecting cable
