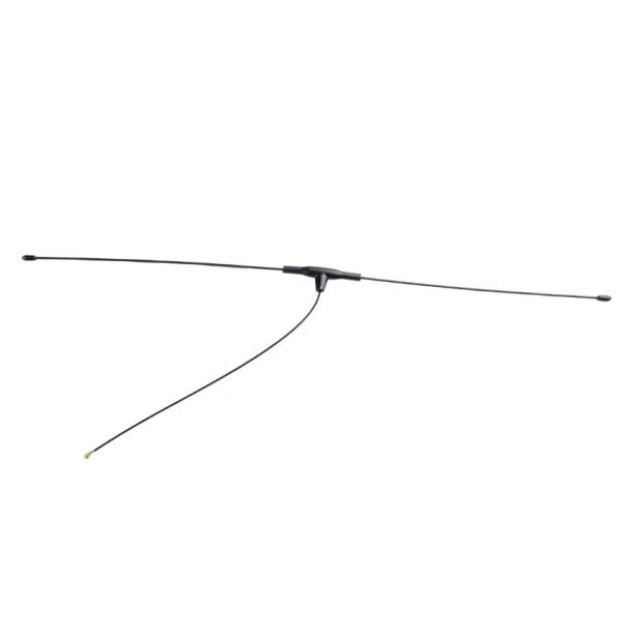

Pilotix T-Antenna ELRS 300-1000MHz
In Stock
€ 2,39
Pilotix T-Antenna ELRS 300-1000MHz is a replacement T-shaped antenna with an IPEX1 connector for ELRS receivers. By trimming, the antenna can be tuned to a specific frequency in the range 300-1000MHz; the corresponding lengths for individual frequencies are listed in the table below. Trimming points are marked on the antenna. It has linear polarization and a 150mm feed cable.
| Frequency | Arm from center | Total |
|---|---|---|
| 309 MHz | 226 mm | 452 mm |
| 362 MHz | 192,5 mm | 385 mm |
| 443 MHz | 157,5 mm | 315 mm |
| 462 MHz | 151 mm | 302 mm |
| 513 MHz | 136 mm | 272 mm |
| 572 MHz | 122 mm | 244 mm |
| 609 MHz | 114,5 mm | 229 mm |
| 661 MHz | 105,5 mm | 211 mm |
| 712 MHz | 98 mm | 196 mm |
| 742 MHz | 94 mm | 188 mm |
| 793 MHz | 88 mm | 176 mm |
| 851 MHz | 82 mm | 164 mm |
| 930 MHz | 75 mm | 150 mm |
| 996 MHz | 70 mm | 140 mm |
| 1041 MHz | 67 mm | 134 mm |
Key Features
- Type: T-antenna
- Connector: IPEX1 (u.FL)
- Polarization: Vertical
- Frequency: 300-1000MHz
- Installation: Standing
- Feed cable length: 150mm
- Base antenna length: 452mm
- Feed cable material: 1.37mm coaxial
Package Includes
- 1x Antenna
