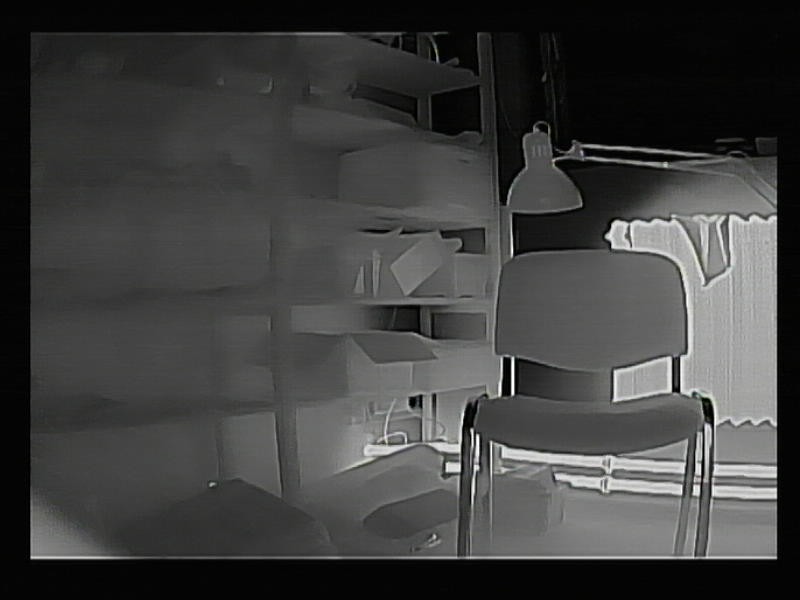

Phynan Vision FT483 Dual is a compact combination of thermal and standard camera with an AI box designed for integration into smaller drones with analog image transmission. The thermal camera uses a uncooled Vanadium Oxide sensor with a resolution of 400×300 pixels and a lens with a focal length of 7 mm. It offers a wide field of view of 68.8° diagonally. The camera uses the thermal palette “white hot”, where warmer areas appear white.
The camera's output is a standard analog video signal CVBS (PAL), which can be directly connected to an analog video transmitter. The camera is powered by a voltage range of 9–24 V.
The thermal camera is complemented by a standard camera for the visible spectrum Ratel Ultra. The camera uses a 1/1.8" sensor and a lens with a focal length of 6mm. The camera's FOV is 36.86° horizontally and 29.14° vertically. The camera has a Micro size with a width of 19mm.

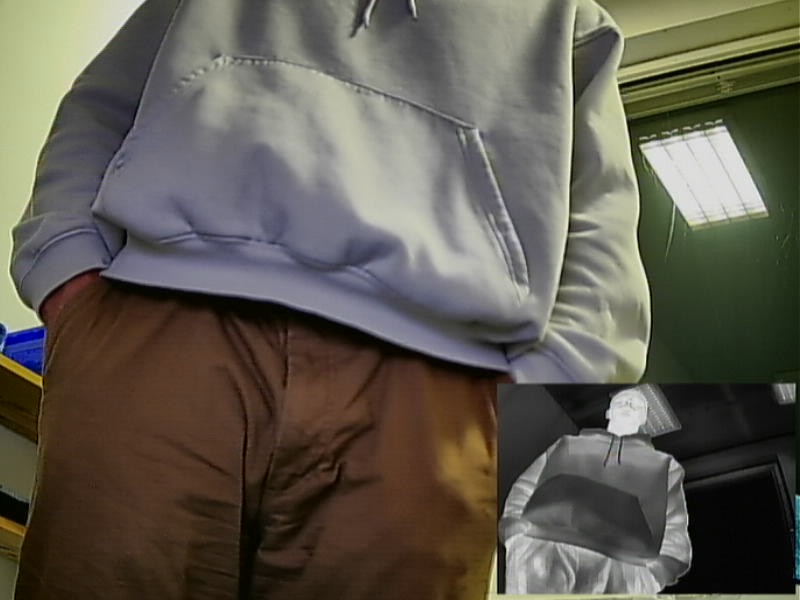

The camera supports control and configuration via UART, allowing adjustment of contrast, brightness, pseudocolors, shutter mode, or enable the Hot Tracking function. It is also possible to switch between the thermal camera and the visible spectrum camera. The camera also supports picture-in-picture (PiP) output. The manufacturer defines the command structure for advanced integration into control units (see manual). The camera also includes an OSD menu, controlled via an external joystick.

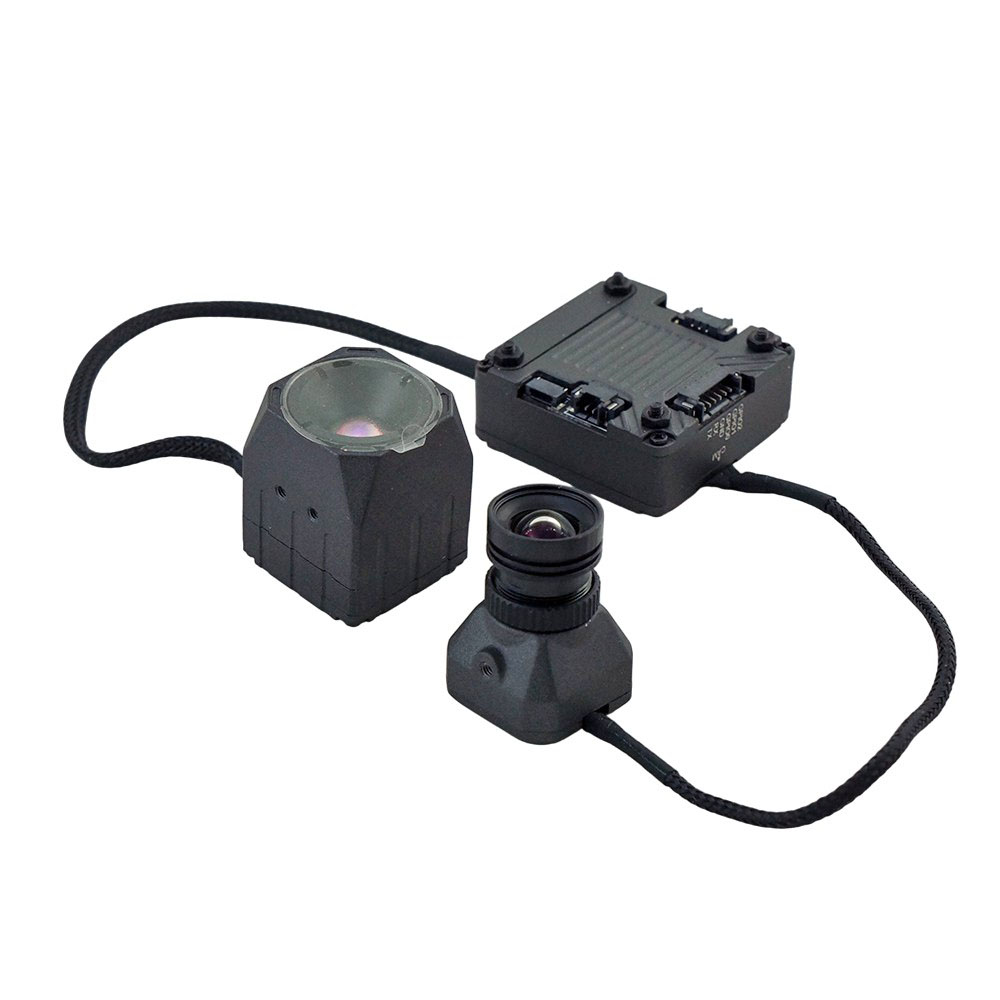

The thermal camera has a width of 22 mm and two M2 threads with a pitch of 6 mm on the sides, making it compatible with mounts for standard Mini-sized analog cameras. The camera is connected to the AI box via a MIPI cable. For easy installation, the AI box has mounting holes with a pitch of 20×20 mm M2 and 25.5×25.5 mm M2.
Cameras are designed for direct installation. They are supplied in simple technical packaging without a decorative box.
