Phynan Curve 7 - 6S ELRS 868MHz

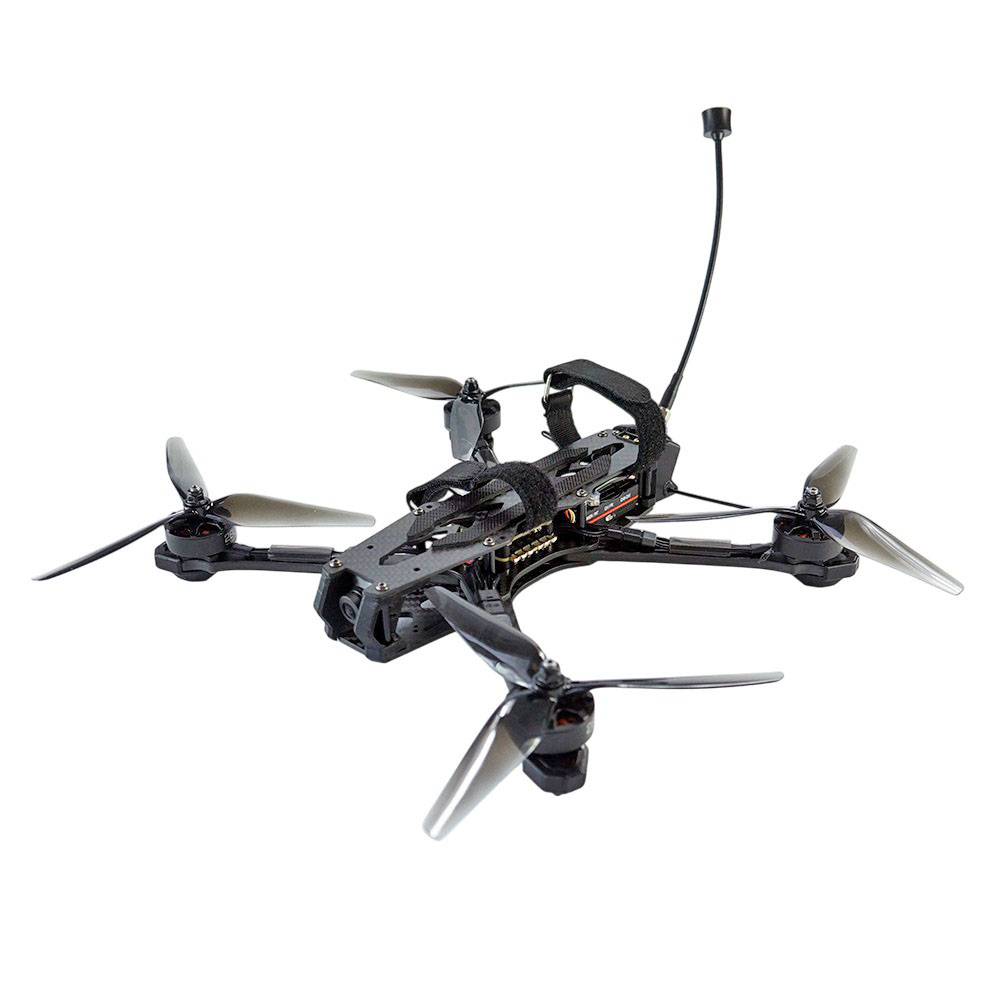

Phynan Curve 7 is a 7" long-range drone with analog video transmission. The frame is in X configuration for good flight characteristics. The drone is particularly suitable for long-distance flights or flying in mountains.

The arms are machined from 5mm thick carbon. Due to the long body, the drone can accommodate larger batteries up to 18cm in length. The XT60 connector is securely attached to the top plate, eliminating the possibility of cables getting entangled in the propeller.

Flight is ensured by the Caddx Neuron stack. The flight controller uses the F405 processor with the ICM42688 gyro and has 16MB of memory for the black box. The regulators use BlHeli_S firmware and can handle up to 55A of current. The drone is equipped with Silence7 2807 1300Kv motors and HQProp 7x3.5x3 propellers. The FPV transmission is provided by the Caddx H1 camera with a 1/3" sensor and 1200TVL horizontal resolution in combination with the analog video transmitter Caddx Graph58 with a maximum output of up to 2.5W. The video transmitter supports 80 channels in the A-B-E-F-R-L-O-U-H-X bands. RC control is provided by the ELRS receiver at a frequency of 868MHz.

The recommended battery is 6S with a capacity of 3000–4000mAh or a 6S2P LiIon pack with a capacity of 8000–10000mAh.

The drone is not packaged by the manufacturer in a Phynan box.
