Phynan Curve 10 - 6S ELRS 868MHz

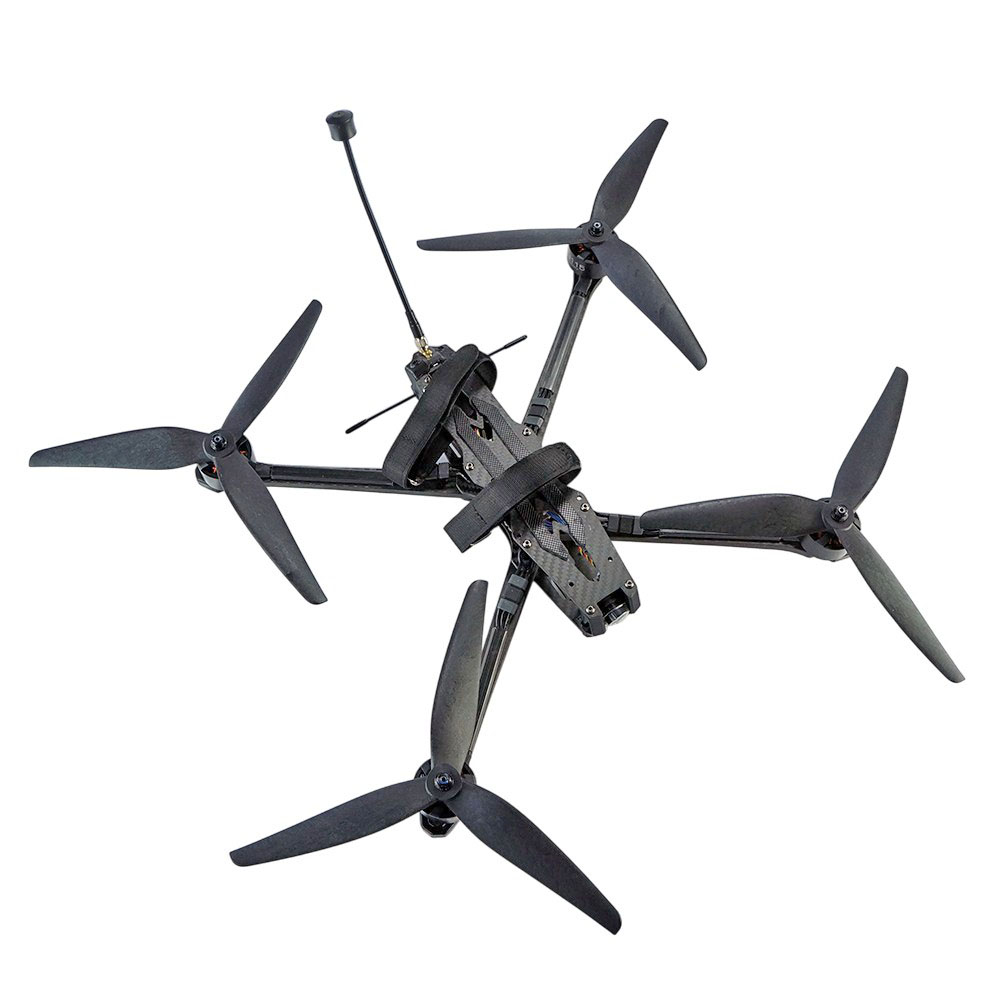

Phynan Curve 10 is a 10" long-range drone with analog video transmission. The frame is in X configuration for good flight characteristics. This drone is primarily suitable for long-distance flights or mountain flying.

The arms are milled from 7mm thick carbon. Due to the long body, the drone can accommodate larger batteries up to 18cm in length. The XT60 connector is securely attached to the top plate, eliminating the possibility of cable entanglement in the propeller.

Flight is ensured by a stack Caddx Neuron. The flight controller uses an F405 processor with a gyro ICM42688 and has 16MB of memory for blackbox. The ESCs use BlHeli_S firmware and can handle currents up to 55A. The drone is equipped with Silence10 3115 900Kv motors and HQProp 10x5x3 propellers. FPV transmission is provided by the Caddx Ratel Pro camera with a 1/1.8" sensor and 1500TVL horizontal resolution in combination with an analog video transmitter Caddx Graph58 with a maximum power of up to 2.5W. The video transmitter supports 80 channels in bands A-B-E-F-R-L-O-U-H-X. RC control is provided by an ELRS receiver operating at 868MHz.

The recommended battery is 6S with a capacity of 3000–4000mAh or a 6S2P LiIon pack with a capacity of 8000–10000mAh.

The drone is not packaged by the manufacturer in a Phynan box.
