Phynan Y0483 384px

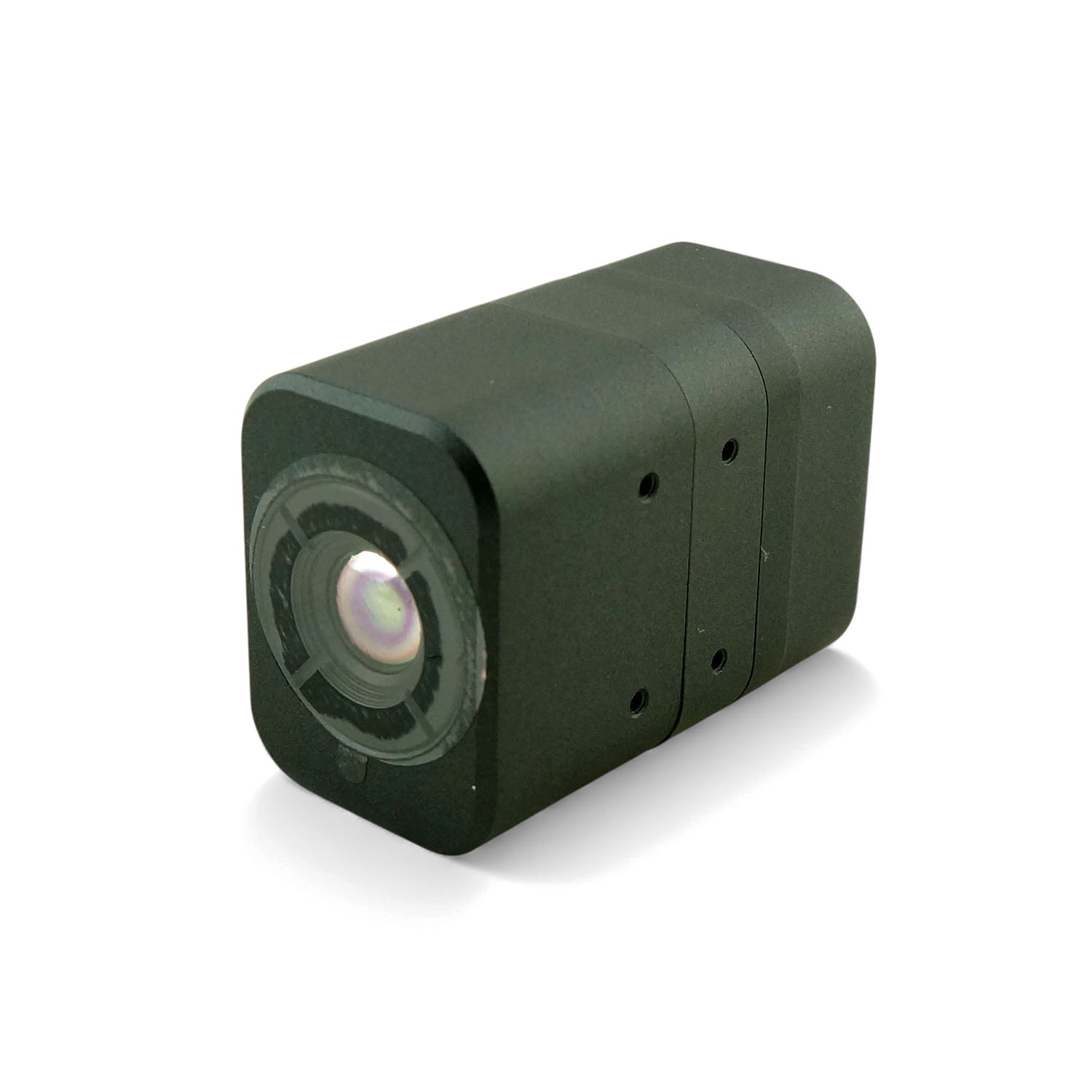

Phynan Vision Y0483 is a compact thermal camera with an analog output PAL designed for imaging in the medium to long infrared range of 7000-14000nm. The camera uses a uncooled VOx IR detector with a resolution of 384×288 pixels, frame rate 50Hz and a lens with a focal length of 4mm. It offers a wide field of view 115° diagonally. The camera uses a thermal palette "white hot", where warmer areas appear white.

The camera is powered by a direct current voltage range of 9–24V. In terms of connectivity, it offers a simple interface – power input and output CVBS video. The camera has no configuration options. For good durability, the camera body is made of aluminum. The external dimensions of the camera are 27x37x50mm. For mounting in the frame, there are mounting holes on the sides with M2 threads and a spacing of 18x10mm. The weight of the camera is approximately 74 grams.

The cameras are intended for direct installation. They are provided in simple technical packaging without a designer box.
