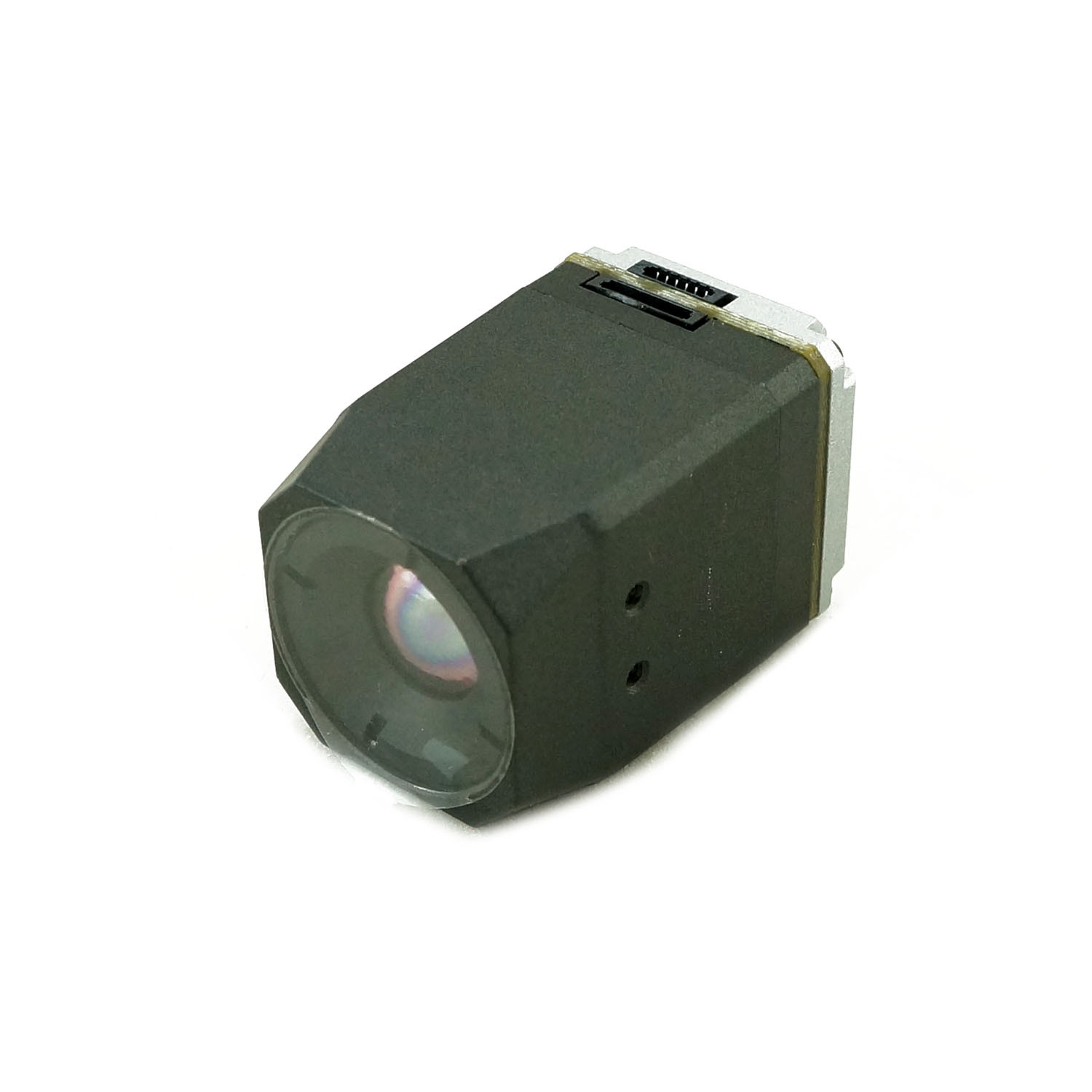

Phynan Vision CA006 V2 is a compact thermal camera with an analog output PAL, intended for use on drones, robotic systems, and industrial applications. The camera uses a uncooled VoX sensor with a resolution of 640x512 pixels, a frame rate of 50Hz and a lens with a focal length of 9.1 mm. It offers a wide field of view 66° diagonally. The camera employs a thermal palette "white hot", where warmer areas appear white.
The camera is powered by a voltage of 9–24 V DC. It connects with three wires – CVBS (video output), GND, and POWER. For advanced applications, it allows connection via signal pins GPIO1 and GPIO2, which can be used for remote brightness control through the control unit. The camera is compatible with the Betaflight system, where brightness can be toggled using PINIO functions and mapped to transmitter channels.
The camera has a width of 22mm and has two M2 threads on the sides with a distance of 6mm, making it compatible with mounts for standard analog cameras sized Mini.
Due to its compact size and low weight, it is suitable for integration into small UAV systems, inspection drones, ground robots, or security devices.
Cameras are intended for direct installation. They are supplied in simple technical packaging without a design box.
Key Features
- Input voltage: 9-24V (via BEC)
- Sensor: Uncooled Vanadium Oxide
- Lens: F1.0/9.1mm
- FOV: 48.3°(H)*38.6°(V)*66°(D)
- Refresh rate: 50fps
- Resolution: 640×512px
- Output: CVBS - PAL
- Power consumption: <1.5W
- Size: 22x22x35mm
- Weight: 28g
User Guides
Package Includes
- 1x Camera
- 1x Screw set
- 1x Connection cable
