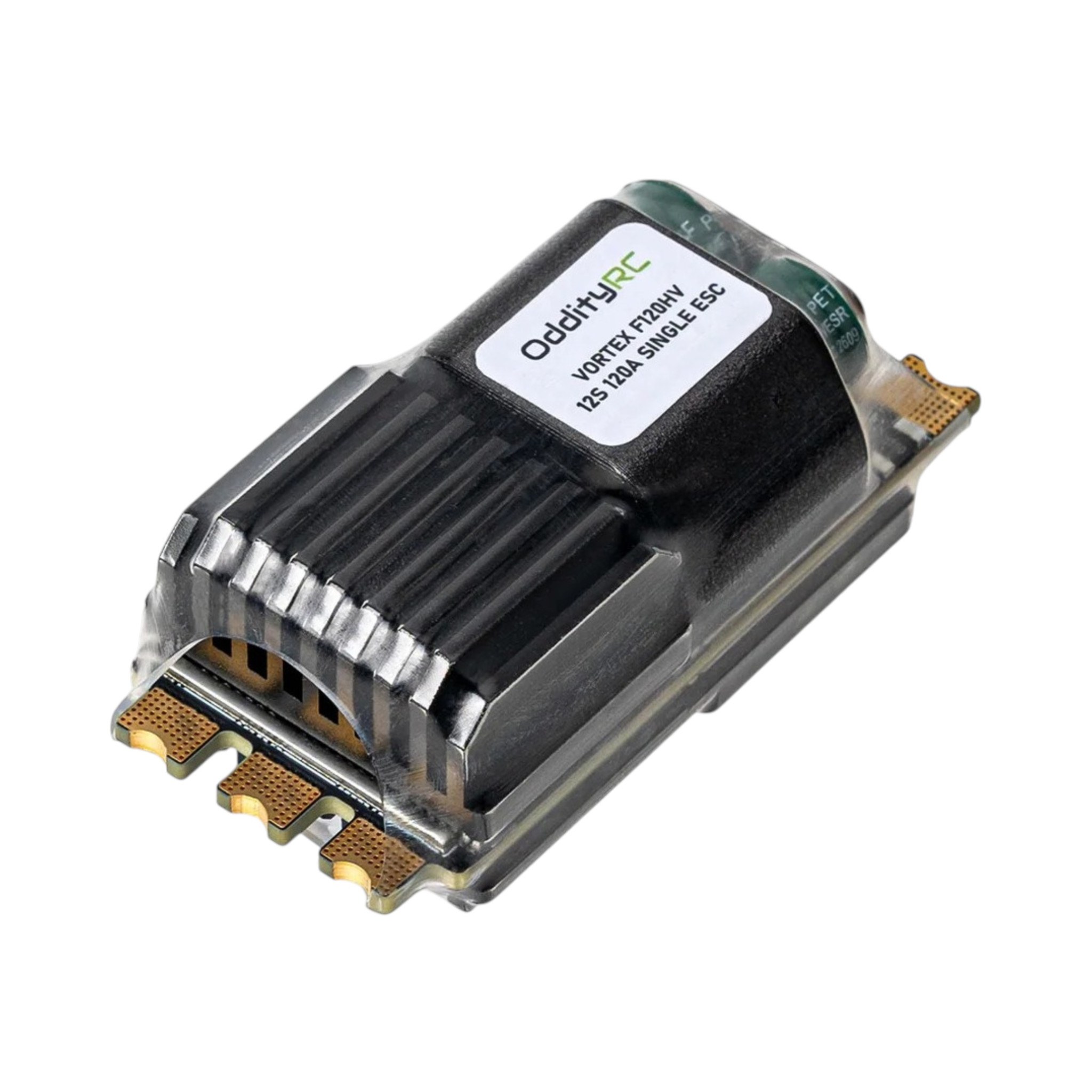

OddityRC Vortex F120HV is a powerful standalone ESC for a single motor, suitable for large aircraft models, large long-range drones, or heavy cinewhoops. The ESC can be powered by 6-12S Lipo batteries and handles current up to 120A.
The ESC is built on a 10-layer PCB and fitted with dual parallel MOSFETs with low internal resistance, which keeps it stable even under long-term load. Heat dissipation is handled by a robust finned aluminum heatsink.
The ESC uses BLHeli_S / Bluejay firmware. The ESC has an integrated current sensor with analog output for easy connection to a flight controller or ADC converter.
Key Features
- Power supply: 6-12S Lipo
- Current: up to 120A
- Firmware: BLHeli_S / Bluejay
- Current sensor: Yes (analog output)
- Size: 75x35x26 mm
- Weight: 145 g (with cables)
Package Includes
- 1x ESC
