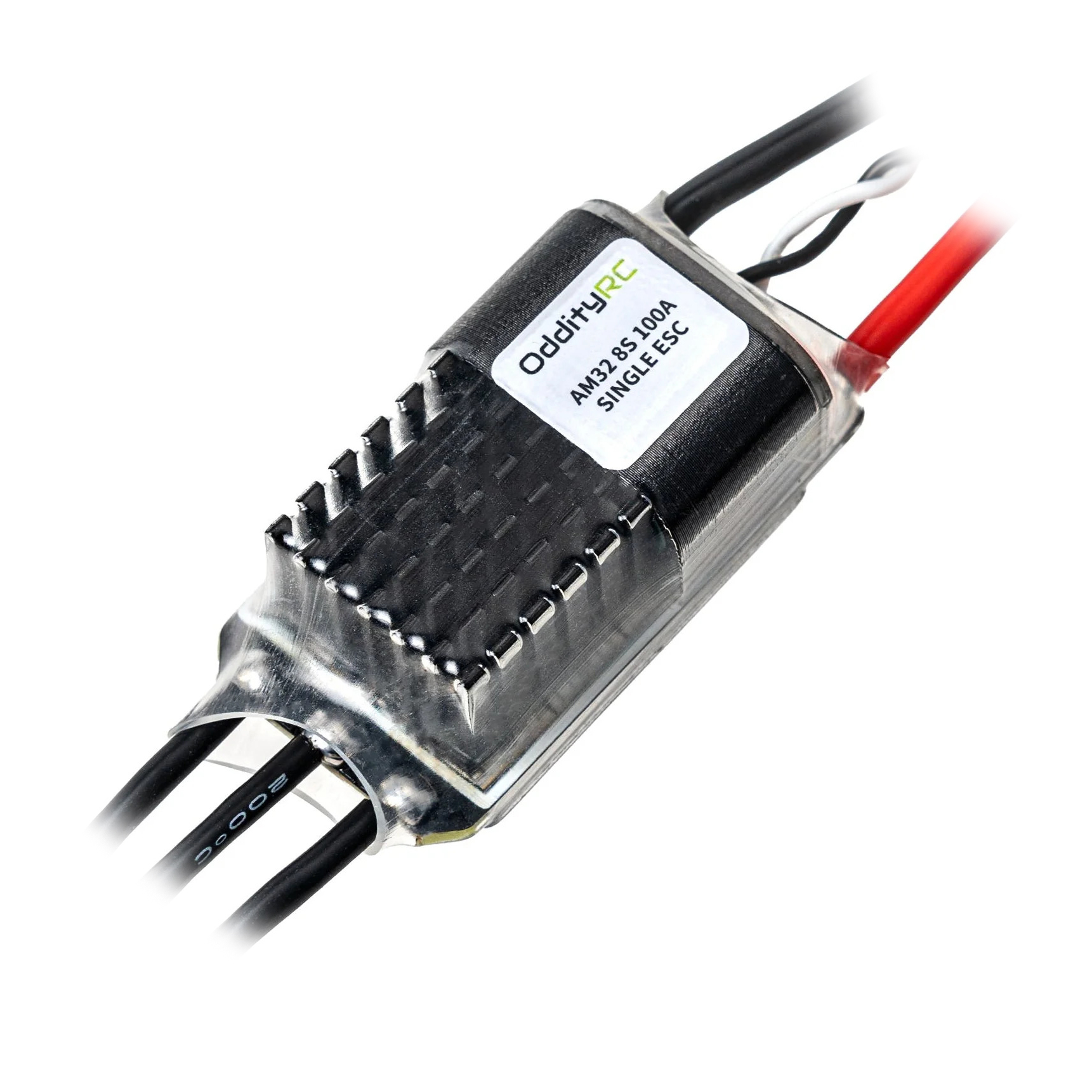

OddityRC Vortex F100 8S AM32 is a standalone ESC suitable for larger 13"-15" drones and high-performance RC airplane models. The ESC supports 3–8S LiPo power and can handle up to 100A.
The ESC is fitted with a pair of 1500 µF / 35 V capacitors and a single-sided aluminum heatsink. The power lead is a 12AWG cable (300 mm) terminated with XT60, and the motor wires are 14AWG fitted with a 4mm bullet connector.
The ESC uses AM32 firmware, which supports telemetry, bidirectional Dshot, adjustable output PWM frequency, and is equipped with a current sensor.
Key Features
- Input voltage: 3–8S
- Current rating: 100A
- Firmware: AM32 (target: AM32_ODDITYRC_F421)
- BEC: No
- Current sensor: Yes
- Capacitors: 2× 1500 µF / 35 V
- Heatsink: single-sided aluminum
- Power connector: XT60
- Motor connector: 4mm bullet
- Dimensions: 61×32×22 mm
- Weight: 90 g
Package Includes
- 1x ESC
