OddityRC Mage Pro - 6S ELRS

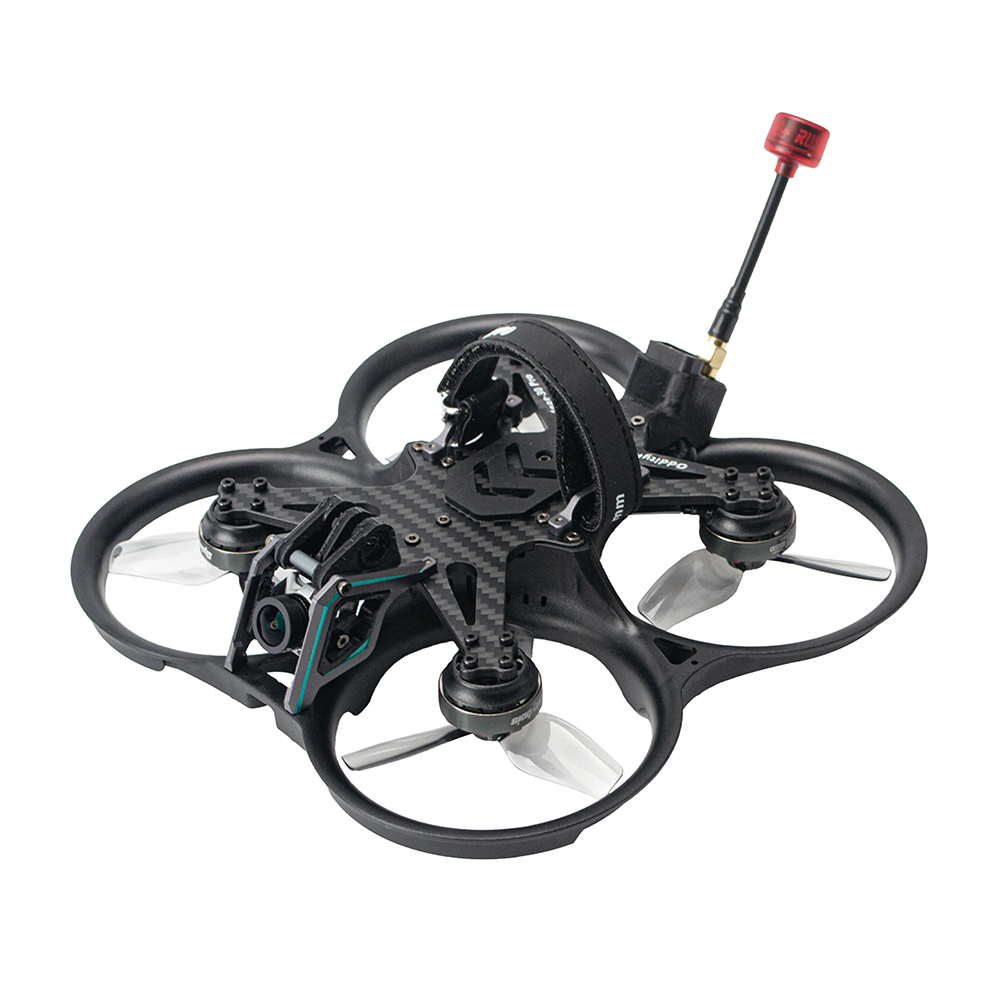

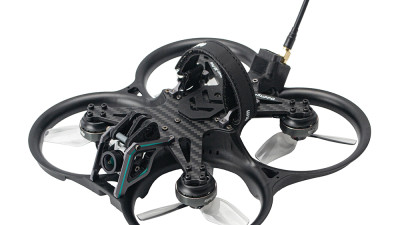

OddityRC Mage Pro is a 3" cinewhoop with analog video transmission for capturing action shots indoors and outdoors. The drone is based on a 3 mm carbon plate complemented by plastic propeller covers, which also protect the electronics within the drone body. The FPV camera is mounted in side panels made of 7075 aluminum alloy with TPU inserts that dampen vibrations transmitted to the camera. There is a 3D printed mount on the side panels for attaching a GoPro camera. On the top plate, there are aluminum parts for securing the lipo strap. At the rear of the drone, there is a fixed USB-C connector for easy setup of the drone's flight controller and a permanently mounted XT60 connector. The diagonal distance between the motors is 131 mm, and the weight of the drone without the battery is approximately 266 g.

Thrust is provided by Spinnybois 2004 2650Kv motors with HQprop DT76 propellers. The flight control is managed by an AIO board OddityRC F7 40A. It uses an F722 processor, ICM42688P gyro and features a barometer for altitude measurement and 16 MB memory for blackbox. The ESCs run on Bluejay firmware. The analog video transmission is provided by the Caddx Ratel 2 camera, a PandaRC video transmitter with output of up to 1.3 W, and an Rush Cherry antenna. The copter comes with an ELRS 2.4 GHz receiver.

The recommended battery is a 6S with a capacity of 850–1100 mAh and an XT60 connector.
