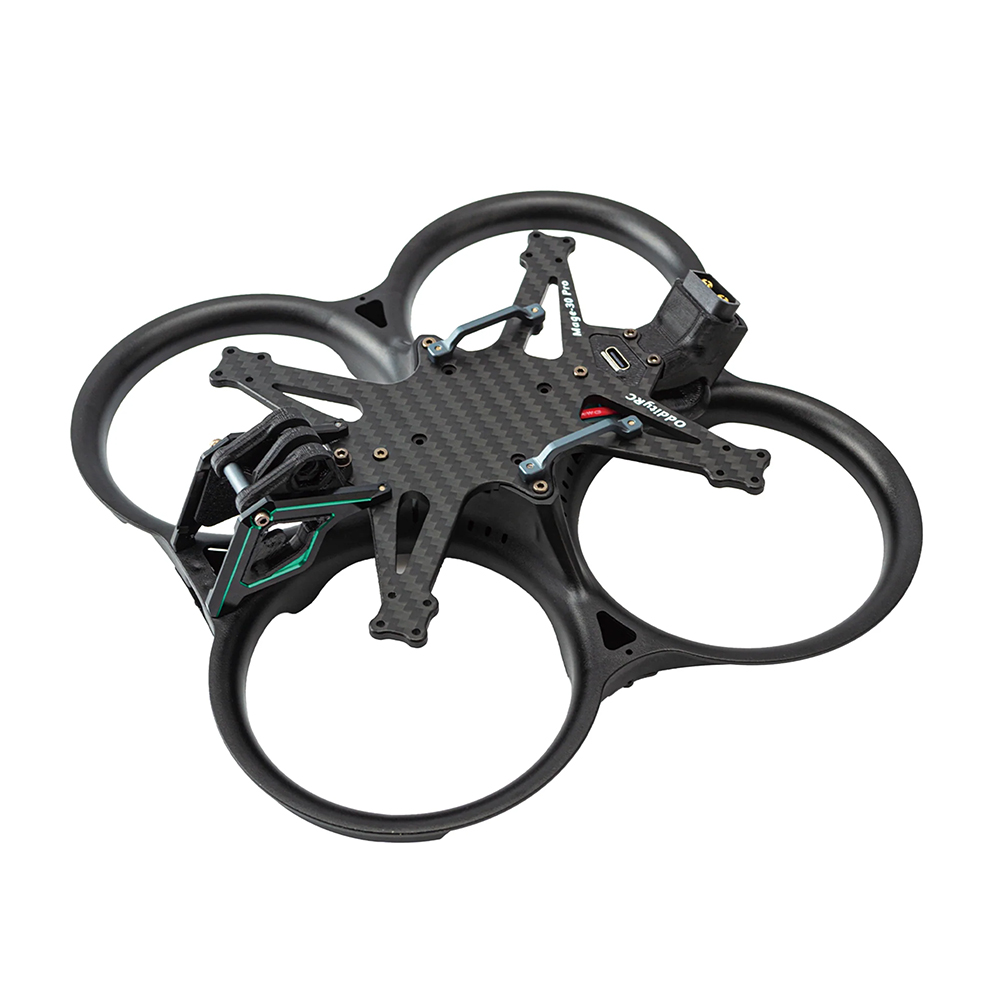

OddityRC Mage-30 Pro is a 3" Cinewhoop frame with a diagonal motor spacing of 131 mm. The main plate is milled from 3 mm thick carbon and supplemented with plastic propeller covers. The propeller covers also protect the electronics inside the drone from dirt.
The frame has a mounting spacing for 12 mm M2 motors, making it suitable for larger and more powerful motors like 1804 or 2004. On the top plate, there are aluminum parts for threading the lipo strap and securely holding the battery. There are holes on the top plate for mounting the AIO board with a spacing of 25.5x25.5 mm. The FPV camera is mounted in TPU parts and in the side plates made of 7075 aluminum alloy, which protects it from impacts. Above the side plates is a 3D printed holder for GoPro cameras. The frame is suitable for analog video transmission and digital transmission Walksnail Avatar or HDZero. At the rear of the frame, there is a 3D print that holds the USB-C connector for easy setup and an XT60 connector for easy battery connection.
The product packaging is slightly dented, the product itself is unaffected.
Key Features
- Diagonal motor distance: 131 mm
- Maximum propeller size: 3" (76 mm)
- Carbon thickness: 3 mm
- Size: 168x168x3 mm
- Integrated USB-C port
- Version: Analog/Vista
- Mounting holes for motors: 12mm M2
- Mounting holes for AIO boards: 25.5x25.5mm M2
- Mounting holes for VTX: 20x20/25.5x25.5mm M2
- Camera size: 19/20mm (Micro)
Package Includes
- 1x Frame
- 2x Pigtail
- 1x Lipo strap
- 1x USB and XT60 connector
- 1x Screw set
