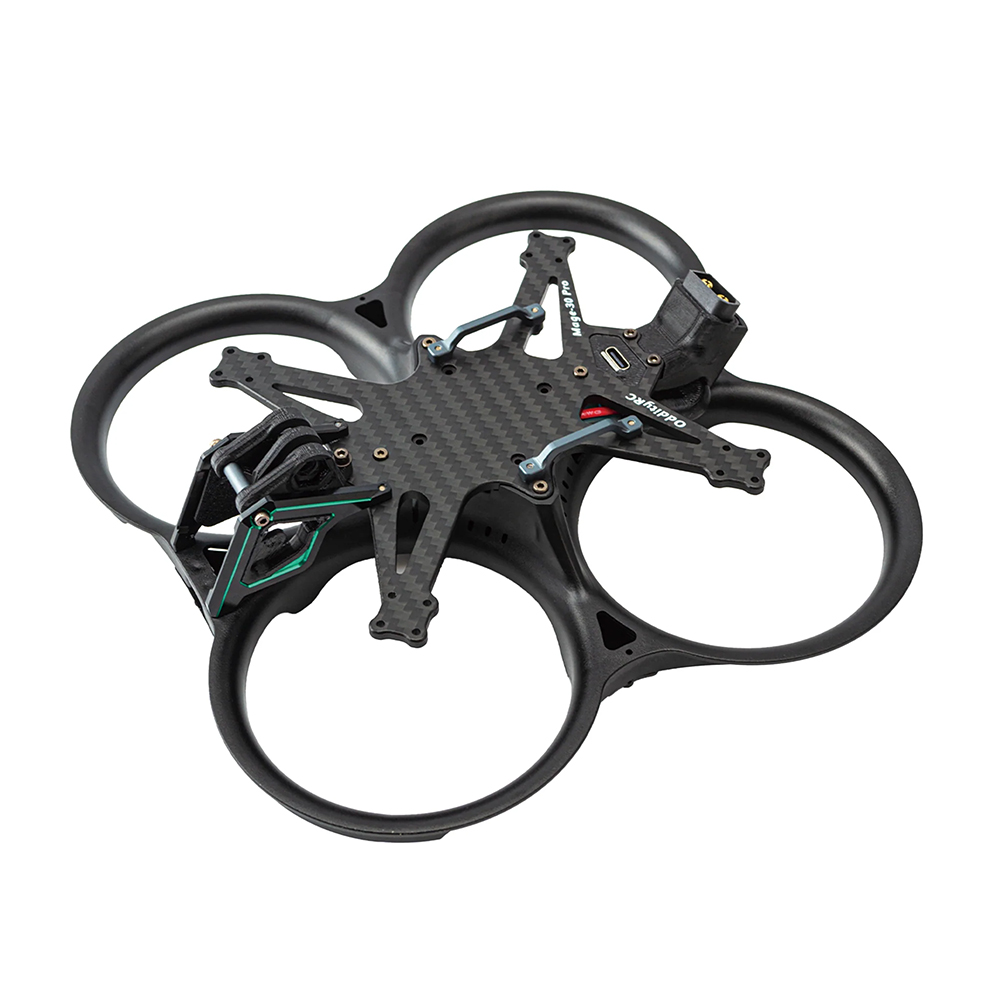

OddityRC Mage-30 Pro is a 3" Cinewhoop frame with a diagonal motor spacing of 131 mm. The main plate is machined from 3 mm thick carbon and is complemented by plastic propeller guards. The propeller guards also shield the electronics inside the drone from dirt.
The frame has a mounting spacing of 12 mm M2 motors, making it suitable for larger and more powerful motors like 1804 or 2004. The top plate features aluminum parts for lipo strap routing and secure battery attachment. There are holes on the top plate for mounting the AIO board with a spacing of 25.5x25.5mm. The FPV camera is secured in TPU parts and in the side panels made of 7075 aluminum alloy, which protect it during crashes. Above the side panels is a 3D printed mount for GoPro cameras. The frame is suitable for analog video transmission and Walksnail Avatar or HDZero digital transmission. At the rear of the frame, there is a 3D print that holds the USB-C connector for easy setup and XT60 connector for simple battery connection.
Key Features
- Diagonal motor distance: 131 mm
- Maximum propeller size: 3" (76 mm)
- Carbon thickness: 3 mm
- Size: 168x168x3 mm
- Integrated USB-C port
- Version: Analog/Vista
- Motor mounting holes: 12mm M2
- AIO board mounting holes: 25.5x25.5mm M2
- VTX mounting holes: 20x20/25.5x25.5mm M2
- Camera size: 19/20mm (Micro)
Package Includes
- 1x Frame
- 2x Pigtail
- 1x Lipo strap
- 1x USB and XT60 connector
- 1x Set of screws
