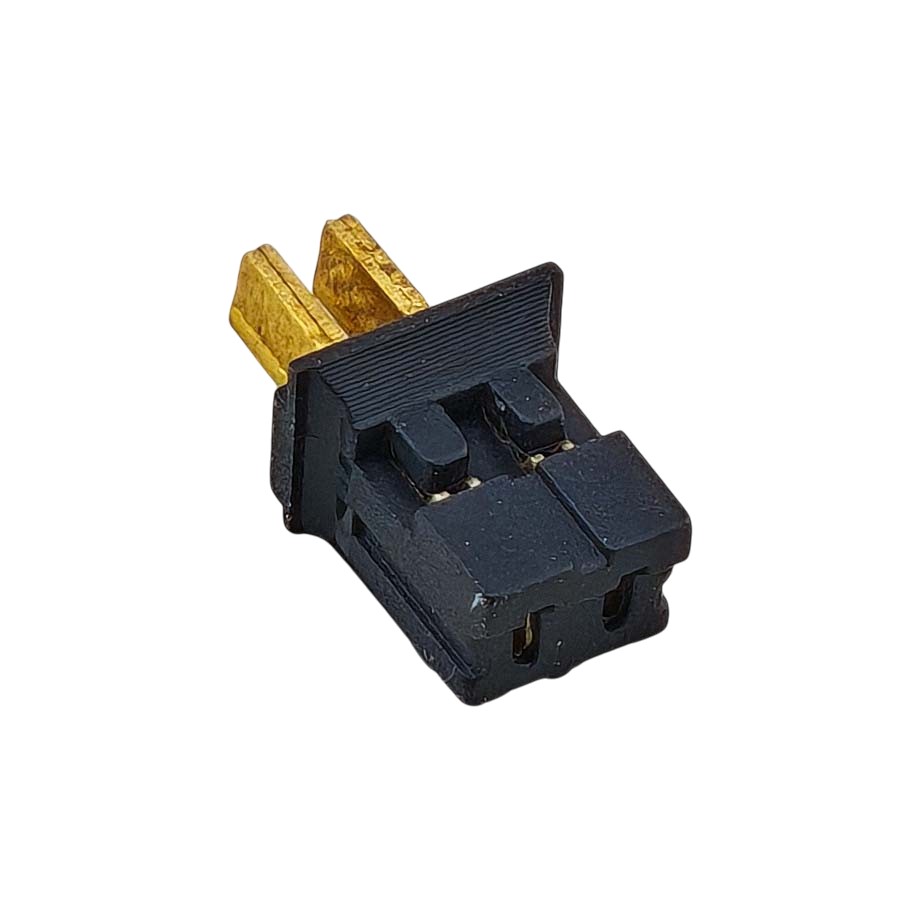

NewBeeDrone NX69 female connector (10pcs)

NewBeeDrone NX69 female connector is a replacement power connector for 1S LiPo setups with an NX69 connector. It is suitable for replacing a damaged connector, making custom cables, or converting existing batteries and whoops to the NX69 system. The package contains 10 pieces.

The NX69 is a connector developed by NewBeeDrone as a replacement for PH2.0. Compared to PH2.0 and BT2.0 connectors, it has a larger contact area according to the manufacturer, resulting in lower contact resistance, less voltage sag under load, and more stable current delivery. It is designed for modern high-discharge batteries (80C and above), making it suitable for racing and freestyle 1S builds. Its shape is based on PH2.0 and it holds more securely in the mating connector, reducing the risk of power loss. The NX69 connector is used, for example, in NewBeeDrone Hummingbird drones and Nitro Nectar NX69 batteries.

Important warning: always check the polarity before connecting for the first time and properly insulate the joint after soldering. Incorrect installation may cause damage, overheating, or fire.
