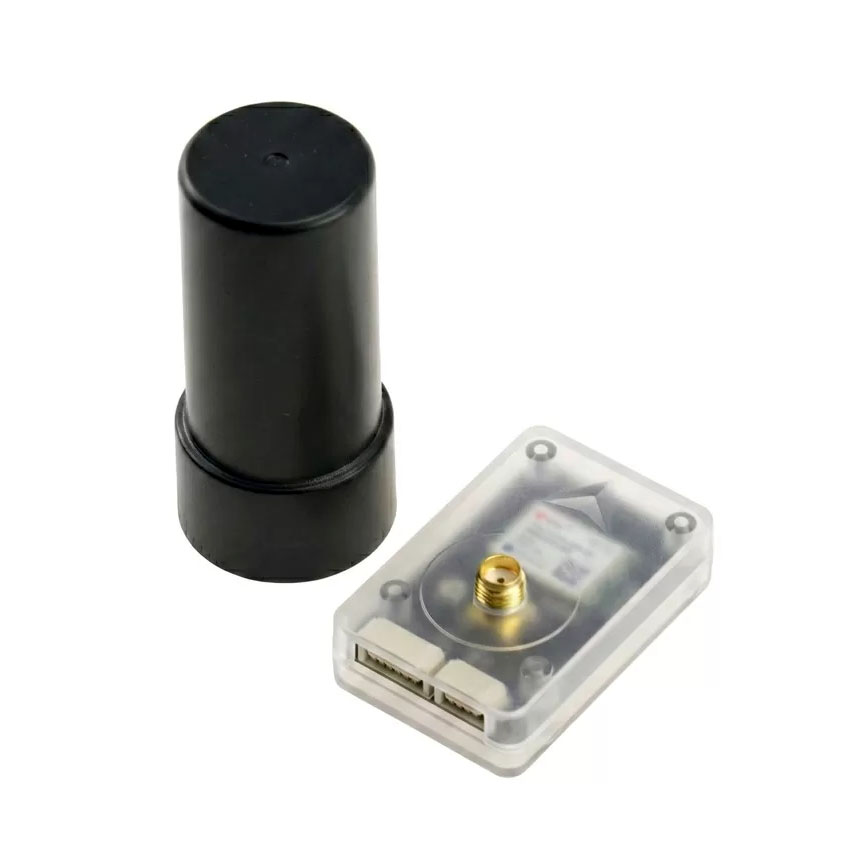

MicoAir MG-F10-C is a GPS module based on the u-Blox NEO-F10N chip, capable of operating on two frequency bands simultaneously - L1 (1575MHz) and L5 (1176MHz). Due to the dual-band receiver, the MicoAir MG-F10-C is more accurate (approximately 1m without RTK) compared to traditional GPS modules and performs better in urban environments. The GPS module uses a Helix antenna with high gain and a 38dB LNA amplifier for quick satellite acquisition. The module supports up to 4 GNSS systems simultaneously and allows a refresh rate of up to 10Hz. The MG-F10 module is equipped with a magnetometer IST8310. The status of the GPS module is indicated by an LED. The blue LED lights up when powered on and blinks when satellites are acquired (3D fix).
The GPS module is supported by Ardupilot and PX4 firmware.
Key Features
- Input voltage: 5V
- GNSS chip: UBLOX NEO-F10N
- Compass: IST8310
- GNSS bands: L1 (1575.42MHz) / L5 (1176.450MHz)
- Supported systems: GPS/QZSS L1C/A, L5; Galileo E1-B/C, E5a; BeiDou B1C, B2a; NavIC SPS-L5;
- Number of active systems simultaneously: 4 (GPS/QZSS; BeiDou; Galileo; NavIC)
- Refresh rate: 10Hz
- Accuracy: 1m CEP
- GPS interface: UART (3.3V LVTTL)
- Compass interface: I2C
- Baudrate: 115200
- Connector type: GH1.25
- Protocol: ublox UBX-PVT
- Antenna connector: SMA
- GPS dimensions: 29x44x14.7mm
- Antenna dimensions: 28x28x59.3mm
- Weight: 28g
Package Includes
- 1x Antenna
- 1x GPS module with cover
