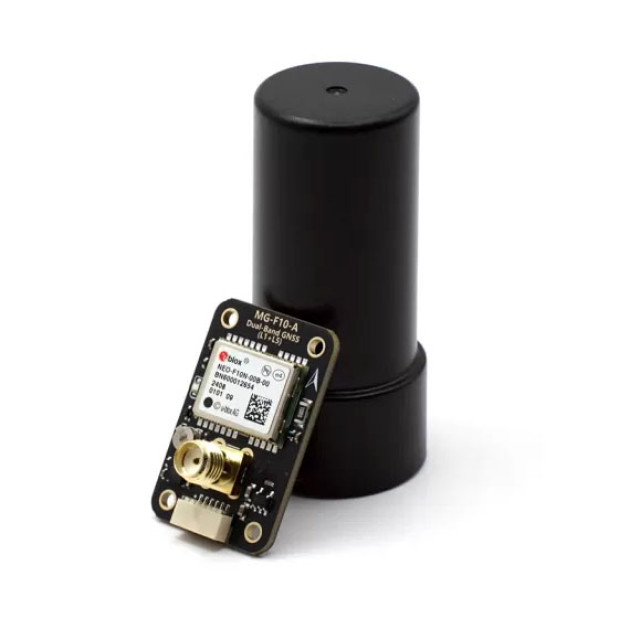

MicoAir MG-F10 is a GPS module based on the u-Blox NEO-F10N chip, capable of operating on dual frequency bands – L1 (1575MHz) and L5 (1176MHz). Thanks to its dual-band reception, the MicoAir MG-F10 offers significantly higher accuracy (approx. 1 meter without RTK) compared to standard GPS modules and performs better in urban environments between buildings. The module uses a high-gain Helix antenna and a 38dB LNA amplifier for fast satellite acquisition. It supports up to 4 GNSS systems simultaneously and provides a refresh rate of up to 10Hz. The MG-F10 also features an integrated IST8310 magnetometer. GPS status is indicated by an LED: a solid blue light means the module is powered, and blinking indicates a 3D satellite fix.
The GPS module is supported by Ardupilot and PX4 firmware.
Key Features
- Input voltage: 5V
- GNSS chip: UBLOX NEO-F10N
- Compass: IST8310
- GNSS bands: L1 (1575.42MHz) / L5 (1176.450MHz)
- Supported systems: GPS/QZSS L1C/A, L5; Galieo E1-B/C , E5a; BeiDou B1C, B2a; NavIC SPS-L5;
- Concurrent: 4 (GPS/QZSS;BeiDou;Galieo;NavIC)
- Navigation rate: 10Hz
- Accuracy: 1m CEP
- GPS interface: UART (3.3V LVTTL)
- Baudrate: 115200
- Protocol: ublox UBX-PVT
- Compass interface: I2C
- Antenna connector: SMA
- Weight: 21g
- Supported firmware: Ardupilot >= 4.4.0, PX4 >= 1.14.0
Package Includes
- 1x Antenna
