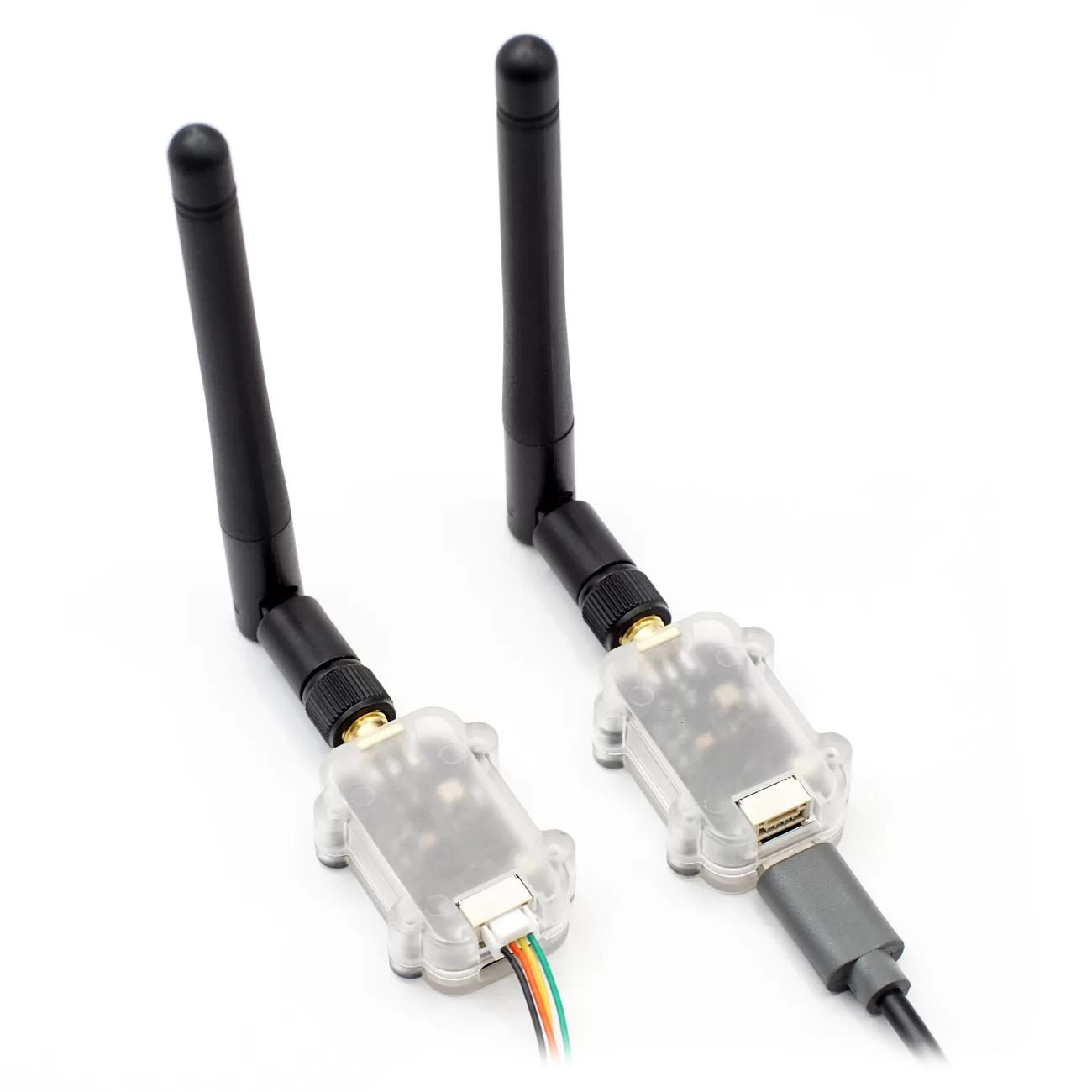

MicoAir LR868-F is a pair of telemetry modules with an output power of 500 mW operating in the 868 MHz band. The module is based on LoRa modulation, making it highly resistant to interference and suitable for long-range communication up to 30 km. The data rate is adjustable from 0.4 KB/s to 3.2 KB/s. It is typically used for Mavlink protocol transmission from a flight controller, but it can transmit any data via UART.
The telemetry module features a JST-GH connector for connection to the flight controller and a USB-C connector for connection to a computer, smartphone, or tablet. The connection status is indicated by a green LED that remains steadily lit when a link is established. Module parameters can be configured via the MicoAssistant application.
The telemetry modules come with large 5 dBi antennas for extended range.
Key Features
- Input voltage: 5V
- Frequency band: 868MHz
- Modulation: LoRa + FHSS
- LoRa baud rate: 2.1kB/s (default), 1.1kB/s, 0.4kB/s
- FHSS baud rate: 3.2kB/s (down) 1.6kB/s (up)
- Maximum packet length: 8192B
- JST-GH baud rate: 9600, 19200, 38400, 57600 (default), 115200
- USB baud rate: 57600 (default), 115200
- Transmitting power: 500mW
- Connector: JST-GH1.25 4P, USB-C (CP2102)
- Antenna connector: SMA
- Size: 43.4x25.8x11mm
- Weight: 8g
Package Includes
- 2x Telemetry Module
- 2x 2.4GHz Antenna
- 1x Cable Set
- 1x USB-A to USB-C Adapter
