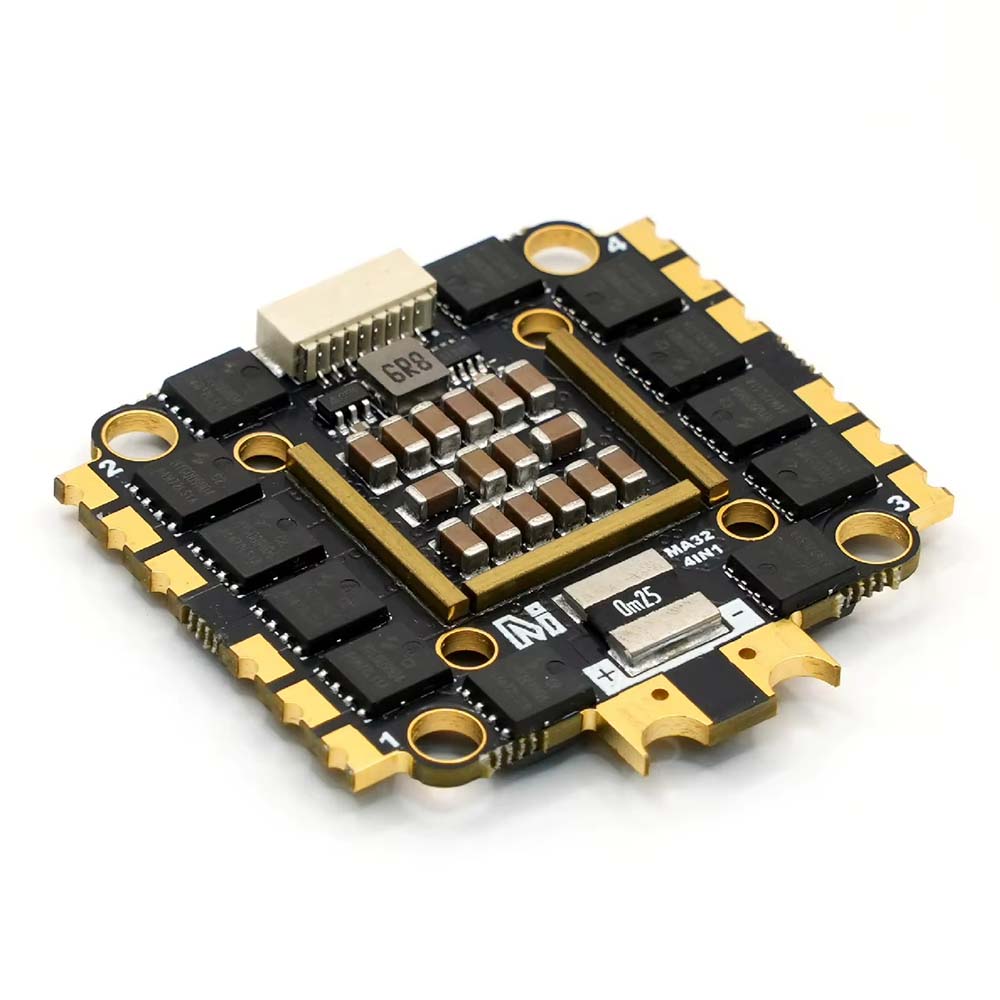

MicoAir 55A ESCs are suitable for 5" freestyle and racing drones powered by 2-6S LiPo batteries. The ESCs use a 32-bit processor running AM32 firmware. They also include a current sensor. Mounting holes are available in both 20x20mm and 30.5x30.5mm formats, making them compatible with a wide range of frames.
Key Features
- Input voltage: 2-6S
- Current: 55A
- Firmware: AM32
- Current sensor (12.75mV/A)
- MOSFET RDS(on): 0.75mR
- PWM Frequency: 48KHz
- Mounting holes: 20x20mm M2 / 30.5x30.5mm M3 (when using softmounts)
- Size: 44x43.5x5.2mm
- Weight: 14g
Package Includes
- 1x ESCs
- 1x Softmount Kit
- 1x XT60 with cable
- 1x Interconnect cable
