MicoAir LR868-F is a pair of telemetry modules with a power of 500mW in the 868MHz band. The telemetry module is based on LoRa modulation, making it very resistant to interference and capable of operating over a long distance of up to 30km. The transmission speed is adjustable in the range of 0.4KB/s to 3.2KB/s. It is typically used for transmitting Mavlink protocol from the drone's control unit, but it can also transmit any data via UART.
The telemetry module features a JST-GH connector for connecting to the control unit and a USB-C connector for connecting to a computer, phone, or tablet. The module's status is indicated by a green LED, which lights up continuously when a connection is established. Parameters can be adjusted using the MicoAssistant app.
Telemetry modules are supplied with larger antennas with a gain of 5dBi.
Key Features
- Input voltage: 5V
- Frequency band: 868MHz
- Modulation: LoRa + FHSS
- LoRa transmission speed: 2.1kB/s (default), 1.1kB/s, 0.4kB/s
- FHSS transmission speed: 3.2kB/s (down) 1.6kB/s (up)
- Maximum packet length: 8192B
- JST-GH baud rate: 9600, 19200, 38400, 57600 (default), 115200
- USB baud rate: 57600 (default), 115200
- Transmission power: 500mW
- Connector: JST-GH1.25 4P, USB-C (CP2102)
- Antena connector: SMA
- Size: 43.4x25.8x11mm
- Weight: 8g

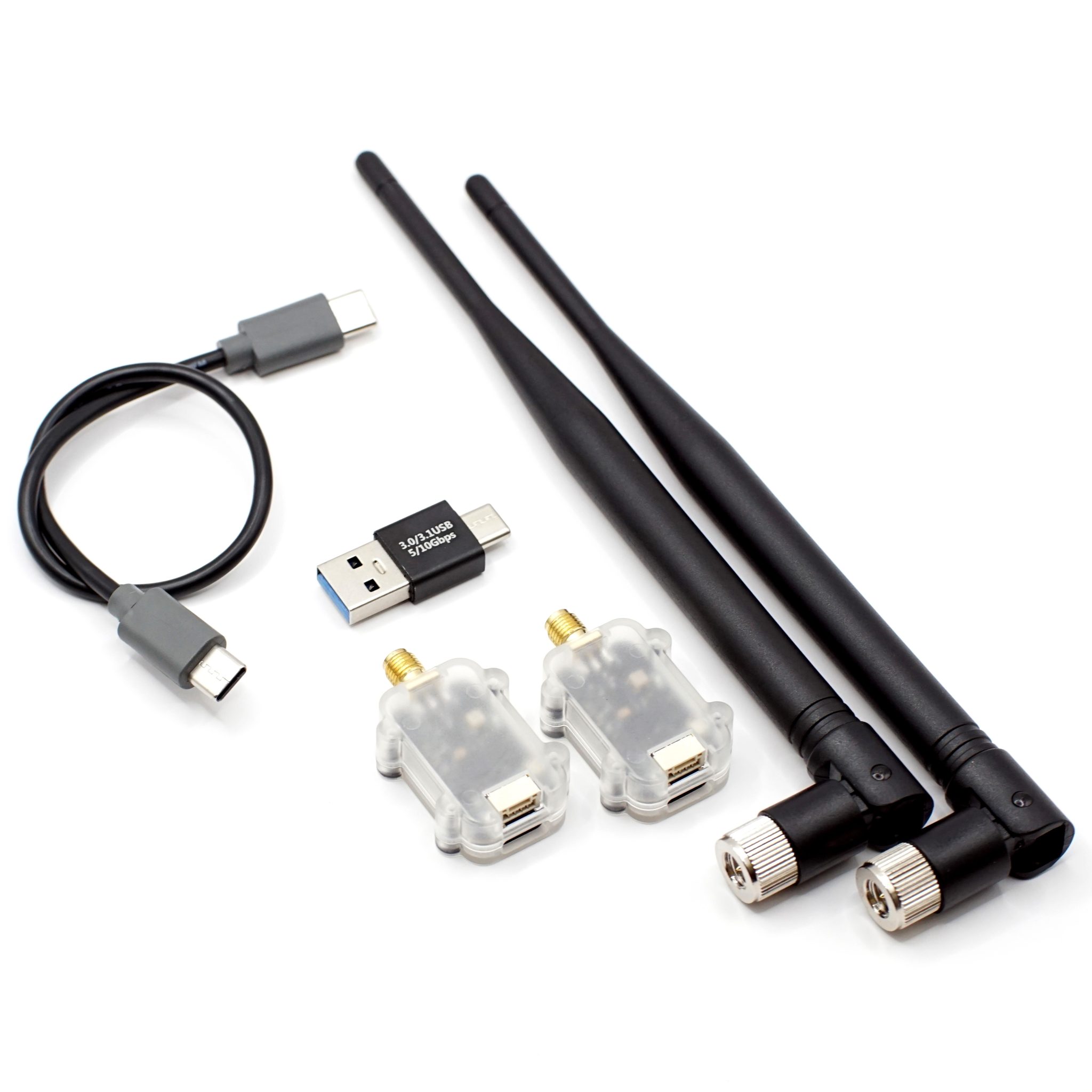

Package Includes
- 2x Telemetry module
- 2x Antenna 868MHz 5dBi
- 1x Cable set
- 1x USB-A - USB-C adapter
