Matek F405-Wing V2 - opened
Matek F405-Wing V2 is a flight controller primarily designed for airplanes and flying wings. The board also includes a PDB (power distribution board) for power distribution from the battery to the board and to the ESCs. It features a current sensor (220A), 5/6/7.2V 5A BEC for servos, 9/12V 2A for video transmitter, camera or gimbal, and 5V 2A BEC for RC receiver, camera, buzzer, GPS, LEDs and other electronics. The board can be powered using a 3-6S Lipo battery. Matek F405-Wing V2 is equipped with a ICM42688-P gyro, barometer, OSD for analog video, SD card slot, 6 UARTs, 2x I2C buses, and 10 PWM outputs. Firmware iNav 6.0 or newer (MATEKF405SE) or ArduPilot 4.4 or newer (MatekF405-Wing) can be used for model control.

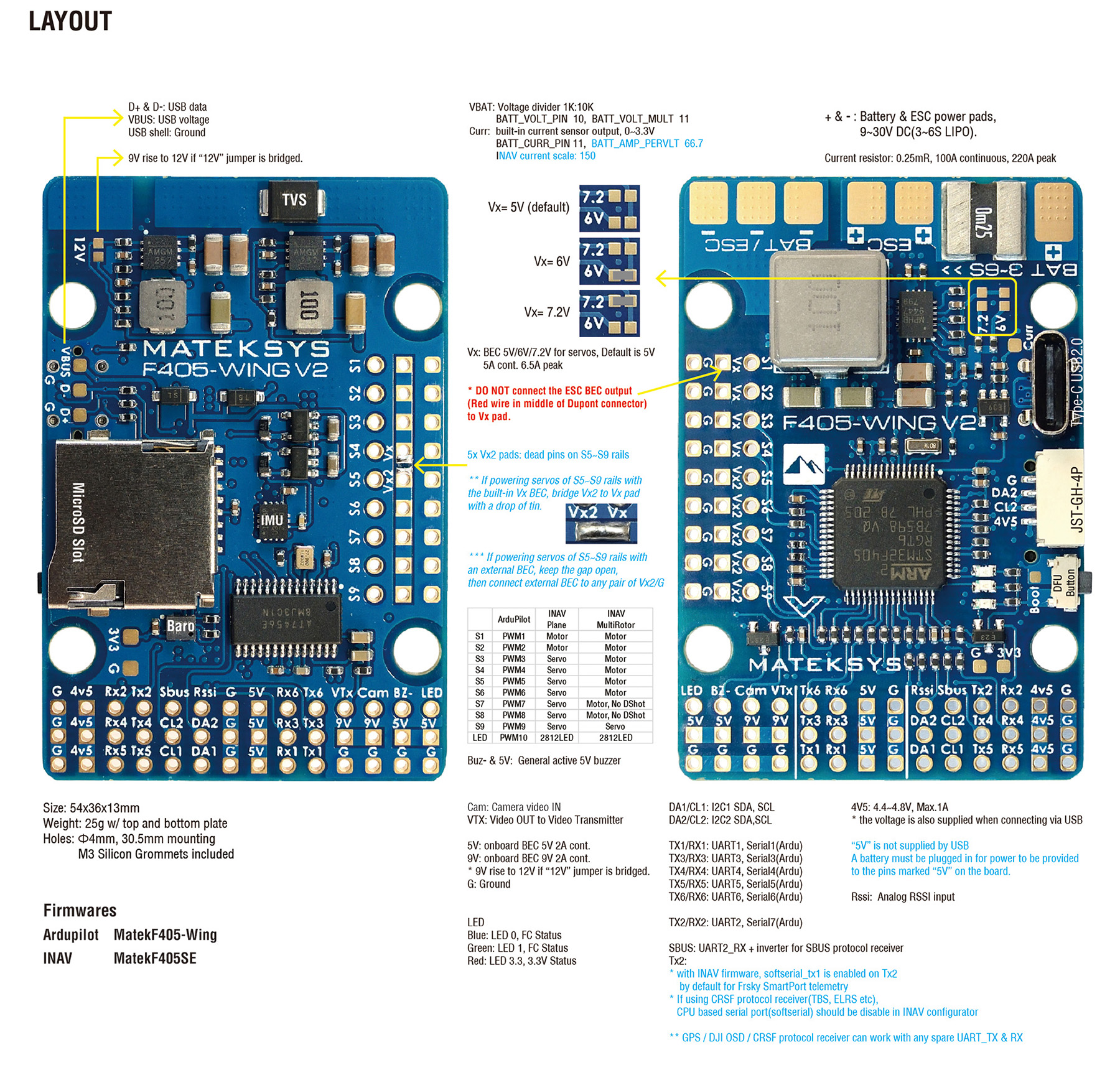

Matek F405-Wing consists of a total of 3 boards, where the top and bottom boards are only for better installation. All necessary electronics are on a single board.
The item has been opened. The flight controller is almost new and shows no signs of use.
Key Features
- Power supply: 3-6S (9-30V)
- MCU: STM32F405RGT6, 168MHz, 1MB Flash
- IMU: ICM42688-P
- Baro: DPS310
- OSD: AT7456E
- Blackbox: SD card slot
- Number of UARTs: 6, 1x Softserial (iNav)
- PWM outputs: 10
- I2C: 2x
- ADC: 3x (Voltage sensor, Current sensor, RSSI)
- Current sensor: 220A (INAV scale 150, ArduPilot 66.7A/V)
- BEC: 5/6/7.2V@5A, 5V@2A, 9/12V@2A
- Mounting holes: 30.5x30.5mm M3
- Size: 54x36x13mm
- Weight: 25g
Package Includes
- 1x Flight controller
- 1x Pin header
