Matek ELRS 2.4G PWM Vario RX
In Stock
€ 28,59

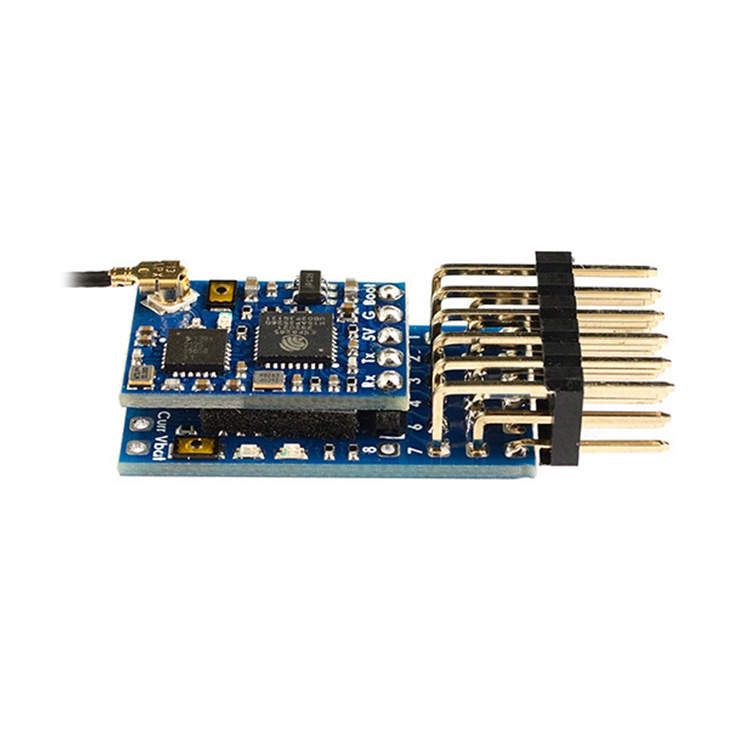

Matek ELRS 2.4G PWM Vario RX is a 7-channel PWM receiver with integrated vario. It will thus find use especially on gliders. The complete receiver consists of two parts. The first one is a classic ELRS receiver with CRSF output. The second part is a board that converts the CRSF signal to PWM channels and obtains telemetry information from the barometer/varia. The board with the converter also supports the connection of a current sensor and a GPS module, it also serves as a voltage sensor. The converter is fully adjustable. Settings are possible via UART2 using Matek Configurator. It is possible to set failsafe, trims, PWM output frequency or calibrate the current/voltage sensor.
Key Features
- Input voltage: 3.5-9V
- ELRS chips ESP8285, SX1281
- Output protocol: 7x PWM
- Integrated barometer
- PWM Frequency: 50/100/160/330/400Hz (50Hz default)
- PWM resolution: 4x 1024 + 3x 128 (ELRS Wide)
- UART: 2x (receiver and GPS/Settings)
- Telemetry: Current, Voltage, Capacity, GPS coordinates, GPS speed, Altitude, Number of satellites
- Battery sensor: 36V Max
- Current sensor: 0-3.3V
- Size: 27x16mm
- Weight: 5g
Package Includes
- 1x ELRS receiver
- 1x PWM converter
- 1x Set of pins
