Matek CAN-L4-PWM enables the connection of ESCs and servos via the DroneCAN bus. The DShot protocol is supported for ESCs, including telemetry. The Vx voltage for powering the servos must be provided by an external BEC.
Key Features
- Input voltage: 5V
- MCU: STM32L431xC, 256KB Flash
- CAN: Yes
- PWM output: 9x
- UART: RX1+Tx3/Rx3
- Mounting holes: 20mm M3
- Size:32x25.4mm
- Weight: 3.5g
Package Includes

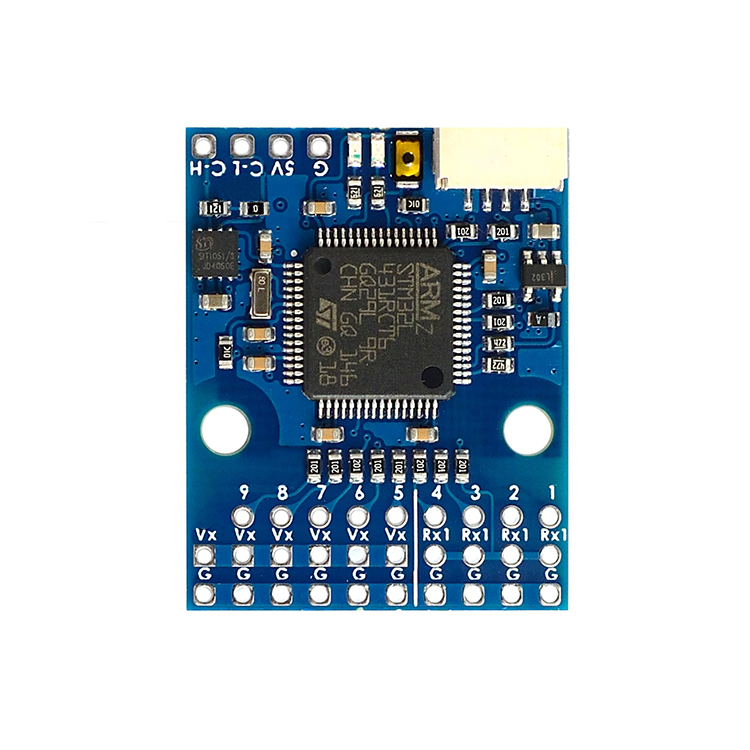

- 1x CAN-L4-PWM board
- 1x 20cm cable JST-GH-4P
