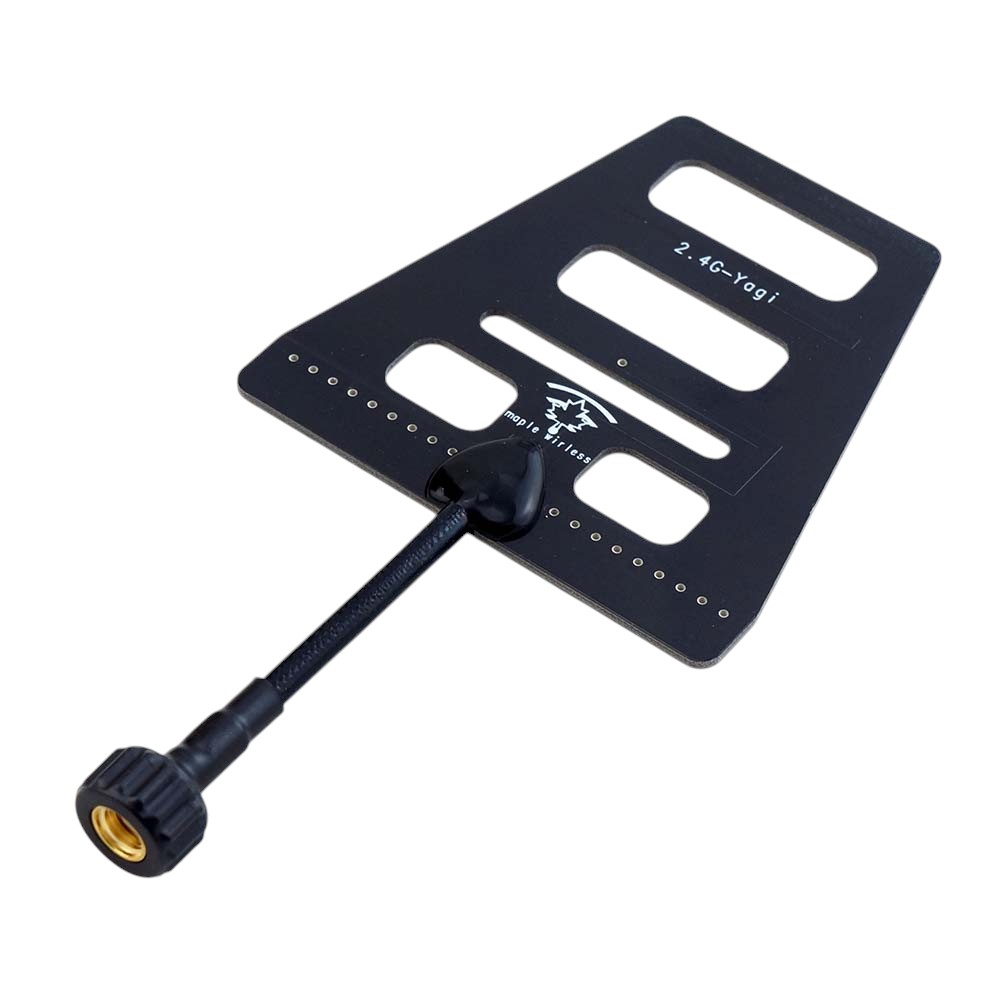

Maple Wireless Yagi is a directional antenna designed to extend the range of RC systems operating in the 2.4 GHz band, such as ELRS. The antenna has a gain of 8 dBi. Compared to a standard dipole antenna, it can effectively double the range. It operates within 2400–2483 MHz and features a radiation angle of 100° in the horizontal plane and 65° in the vertical plane. The Yagi antenna uses linear polarization.
When flying, the edge of the antenna must be aimed at the drone.
Key Features
- Frequency: 2400–2483 MHz
- Gain: 8dBi
- Beam angle: 100° H-plane, 65° E-plane
- Polarization: linear
- Connector: RP-SMA
- Dimensions: 124x68x1.5mm
- Weight: 17.8 g
Package Includes
- 1x Antenna
