Maple Wireless Dual-band 868MHz/2.4GHz Moxon (2pcs)
On the way - Jul 9, 2026
Watch availability
€ 32,89
Maple Wireless Moxon is a dual-band directional antenna with a RP-SMA connector suitable for RC transmitters and TX modules. The antenna operates in the 860-960MHz and 2400-2483MHz bands — it can be used with the ELRS system at both 868MHz and 2.4GHz. The antenna gain is 4dBi.

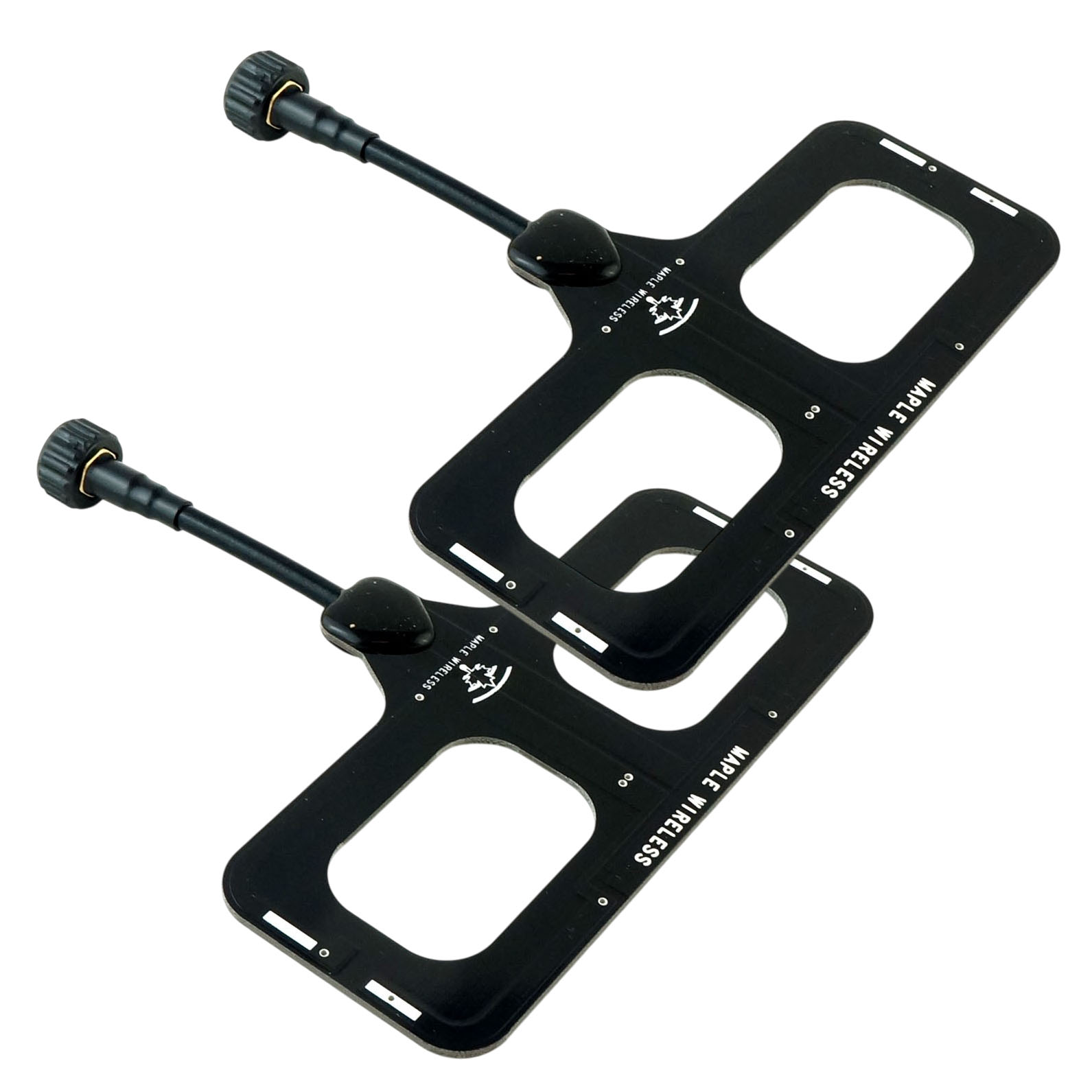

The design consists of a flat antenna on a PCB measuring 110x43x1.5mm and weighing 18.5g. The horizontal radiation angle of 180° provides higher tolerance to the orientation of the flying model compared to narrowly directional Yagi antennas.
Key Features
- Frequency: 860-960MHz / 2400-2483MHz
- Gain: 4dBi
- Horizontal radiation angle: 180°
- Vertical radiation angle: 80°
- Weight: 18.5g
- Size: 110x43x1.5mm
Package Includes
- 2x Antenna
