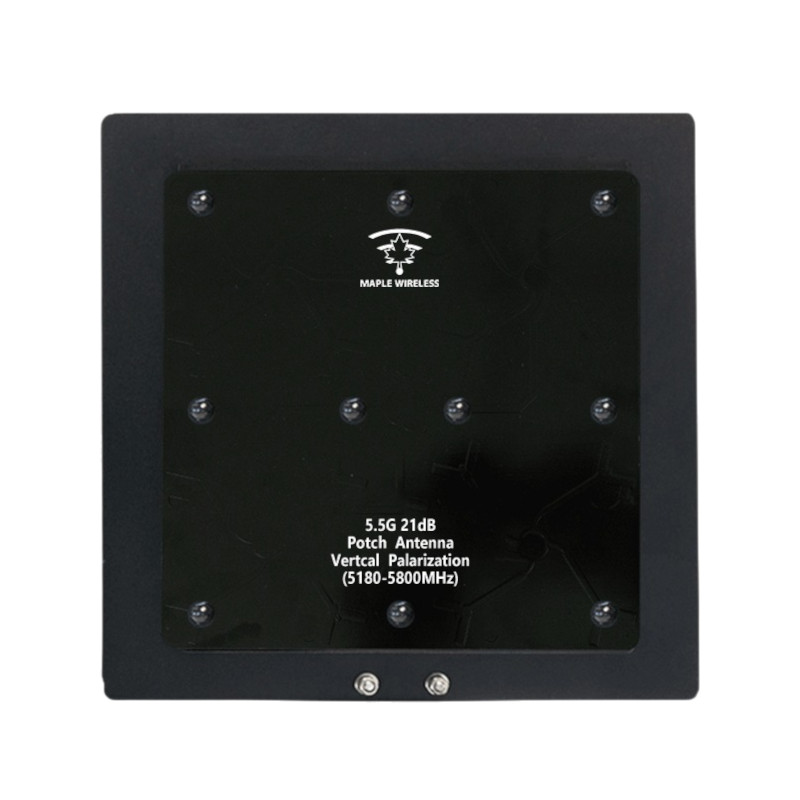

Directional antenna with a very high gain 21dBi designed for frequencies 5.18-5.8GHz. The antenna is particularly suitable for long-distance flights. Due to its larger dimensions and narrow radiation pattern, it is recommended to be installed on a tripod or antenna tracker. The antenna connects via a flexible coaxial cable of 38cm in length terminated with a SMA/RP-SMA connector. The antenna features linear vertical polarization.
Key Features
- Frequency range: 5180 – 5800 MHz
- Gain: 21 dBi
- Radiation angle: 15° (-3db)
- Connector: SMA/RP-SMA
- Cable length: 38cm
- Polarization: Linear
- Dimensions: 186x186x15mm
- Weight: 162g
Package Includes
- 1x Antenna
