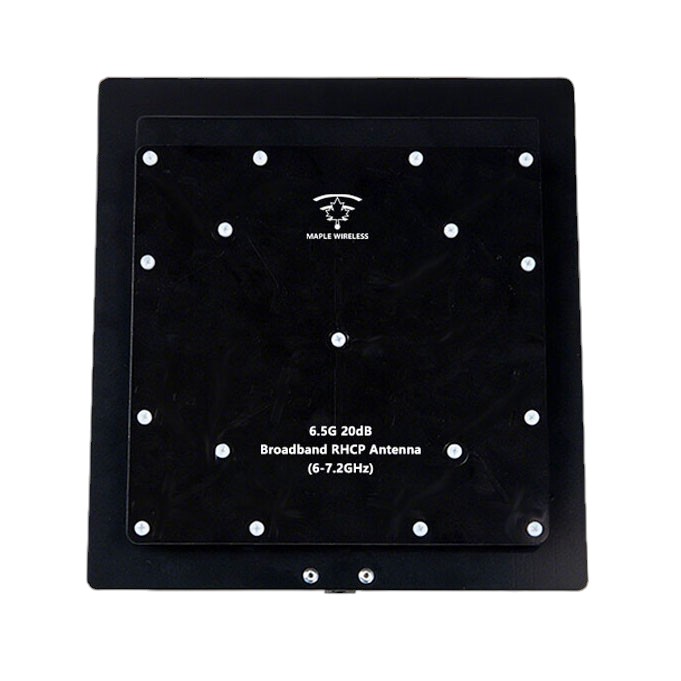

Directional antenna with very high gain up to 20dBi and RHCP polarization designed for frequencies 6-7.2GHz. Due to the larger dimensions of the antenna 20x20cm and narrow radiation pattern 16°, it is suitable for installation on a tripod or antenna tracker. For easy mounting, there is a tripod thread on the bottom of the antenna. On the back of the antenna, there are another 4 M3 mounting holes with a pitch of 38x40mm. The antenna has an SMA female connector. It is connected via a flexible coaxial cable that holds its shape. The cable is 30cm long and terminated with an SMA male connector.
Key Features
- Frequency range: 6000-7200GHz
- Gain: up to 20dBi
- Radiation angle: 16° (-3db)
- Connector: SMA
- Cable length: 30cm
- Polarization: RHCP
- Dimensions: 208x208x20mm
- Weight: 255g
Package Includes
- 1x Antenna
- 1x Coaxial connecting cable
