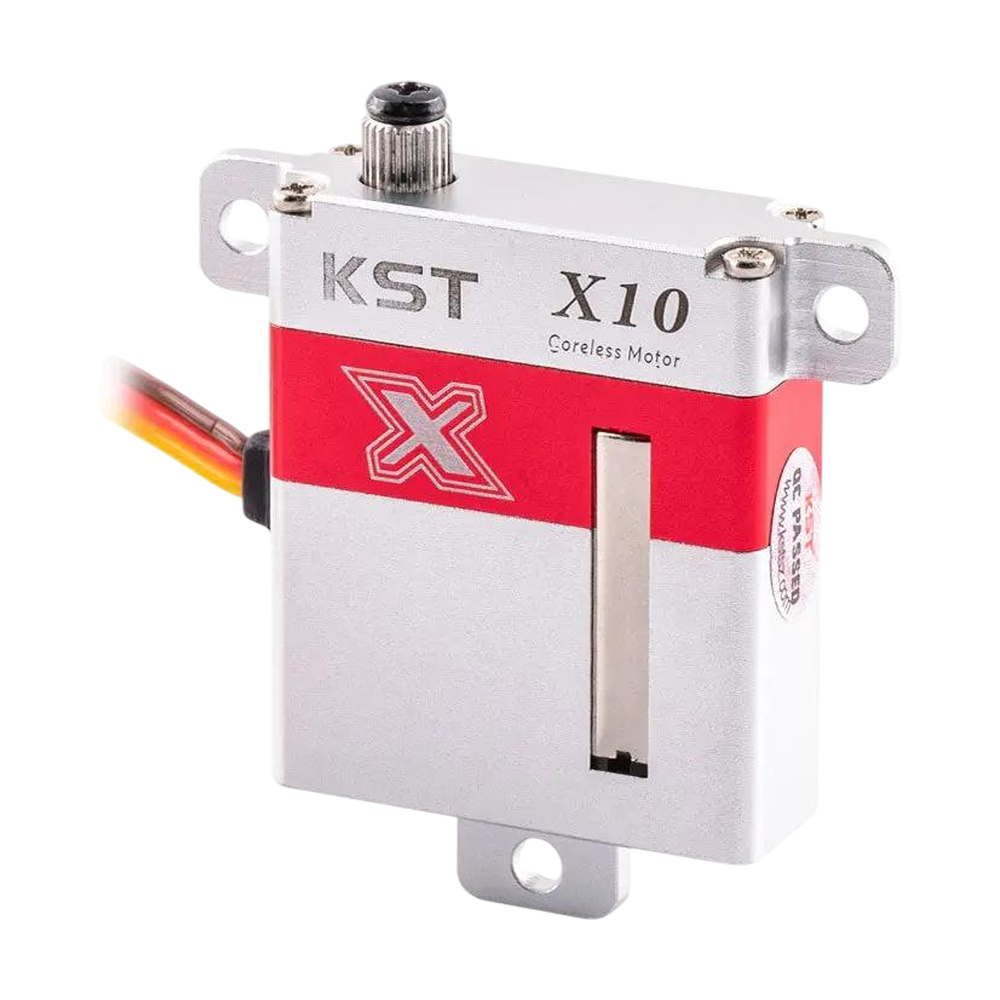

KST X10 V8.0 is a powerful wing servo with a thickness of 10mm, suitable for F3J, F3B and F3F gliders. It features high torque and exceptionally smooth operation. The KST X10 Mini is a smaller and lighter version.
It is powered by a coreless motor. Hardened steel gears are complemented by two ball bearings. The machined (CNC) aluminum alloy case dissipates heat effectively. The servo weighs 28g. It is an HV servo with an input voltage range of 4.8-8.4V, from 4S NiMH to 2S LiPo. At 8.4V, it delivers 10.8kg-cm of torque and a speed of 0.10s/60°.
The default travel is 100° (±50° with a 1000-2000uS signal). The KST Tool #5 programming card (sold separately) allows adjustment of the center, end points, rotation direction and smooth start-up (“soft start”). The servo cable is 15cm long.
Key Features
- Input voltage: 4.8-8.4V (4S NiMH to 2S LiPo, nominal 7.4V)
- Speed: 0.16s/60° (4.8V), 0.14s/60° (6V), 0.12s/60° (7.4V), 0.10s/60° (8.4V)
- Torque: 6.2kg-cm (4.8V), 7.5kg-cm (6V), 9.5kg-cm (7.4V), 10.8kg-cm (8.4V)
- Gears: Metal (hardened steel)
- Travel: 100° (±50°, 1000-2000uS)
- Operating frequency: 333Hz
- Pulse range: 900-2100uS
- Motor: Coreless
- Bearings: 2x ball bearings
- Case: Aluminum alloy (CNC)
- Position sensor: Potentiometer
- Programmable: Yes (center, end points, direction, soft start)
- Output shaft: 25T, 5mm
- Cable length: 15cm
- Dimensions: 30x10x35.5 mm
- Weight: 28g
- Operating temperature: -10 to +65°C
Package Includes
- 1x Servo
- 1x Servo arm set (5x plastic servo arm)
- 1x Screw set (3x mounting screw, 1x servo arm screw)
