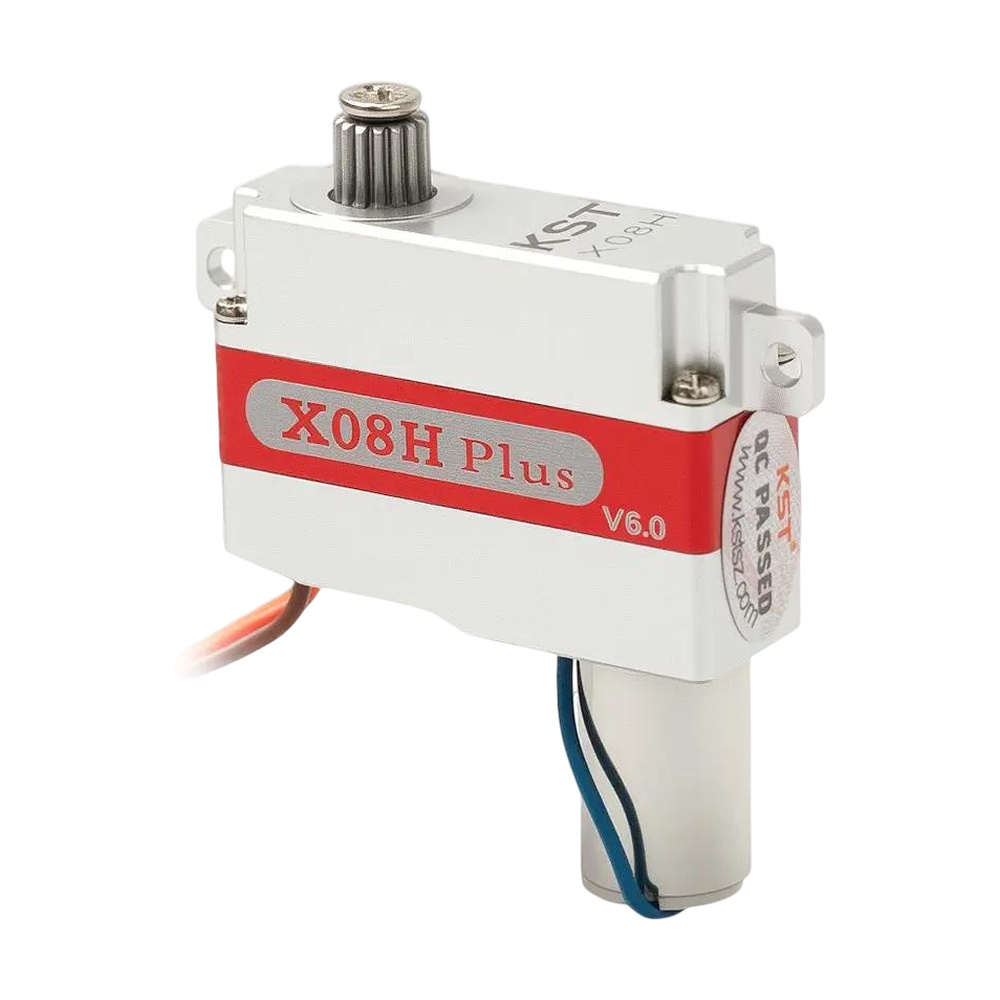

KST X08H Plus V6.0 is a lightweight micro servo with a thickness of only 8mm. It is a version of the KST X08 Plus servo with horizontal mounting lugs („horizontal lugs“) and identical performance parameters. The servo is suitable for thin wings and other control surfaces. It is mainly used as an aileron servo in gliders of the F5J, F5D and F3J categories, in fast electric and pylon racing models, and in EDF models.
It is powered by a coreless motor. The gears are made of hardened steel and, thanks to precision machining, have virtually no play. The aluminium alloy case dissipates heat well. The servo weighs 9,5g. It operates within a 3,8-8,4V voltage range, corresponding to a 1S to 2S LiPo battery. At 8,4V, it delivers a torque of 5,3kg-cm and a speed of 0,09s/60°.
The default travel is 120° (±60° at a 1000-2000uS signal). The KST Tool #5 programming card (sold separately) allows adjustment of the centre position, endpoints, rotation direction and smooth start („soft start“).
Key Features
- Power supply: 3,8-8,4V (1-2S LiPo, nominal 7,4V)
- Speed: 0,18s/60° (3,8V), 0,15s/60° (6V), 0,12s/60° (7,4V), 0,09s/60° (8,4V)
- Torque: 2,4kg-cm (3,8V), 3,8kg-cm (6V), 4,84kg-cm (7,4V), 5,3kg-cm (8,4V)
- Gears: Metal (hardened steel)
- Travel: 120° (±60°, 1000-2000uS)
- Operating frequency: 333Hz
- Pulse range: 900-2100uS
- Mounting lugs: Horizontal
- Motor: Coreless
- Case: Aluminium alloy
- Position sensor: Potentiometer
- Programmable: Yes (centre, endpoints, direction, soft start)
- Output shaft: 15T, 4mm
- Dimensions: 23,5x8x16,8 mm
- Weight: 9,5g
- Operating temperature: -10 to +65°C
Package Includes
- 1x Servo
- 1x Servo horn set (4x plastic servo horn)
- 1x Screw set (4x mounting screw, 1x servo horn screw)
