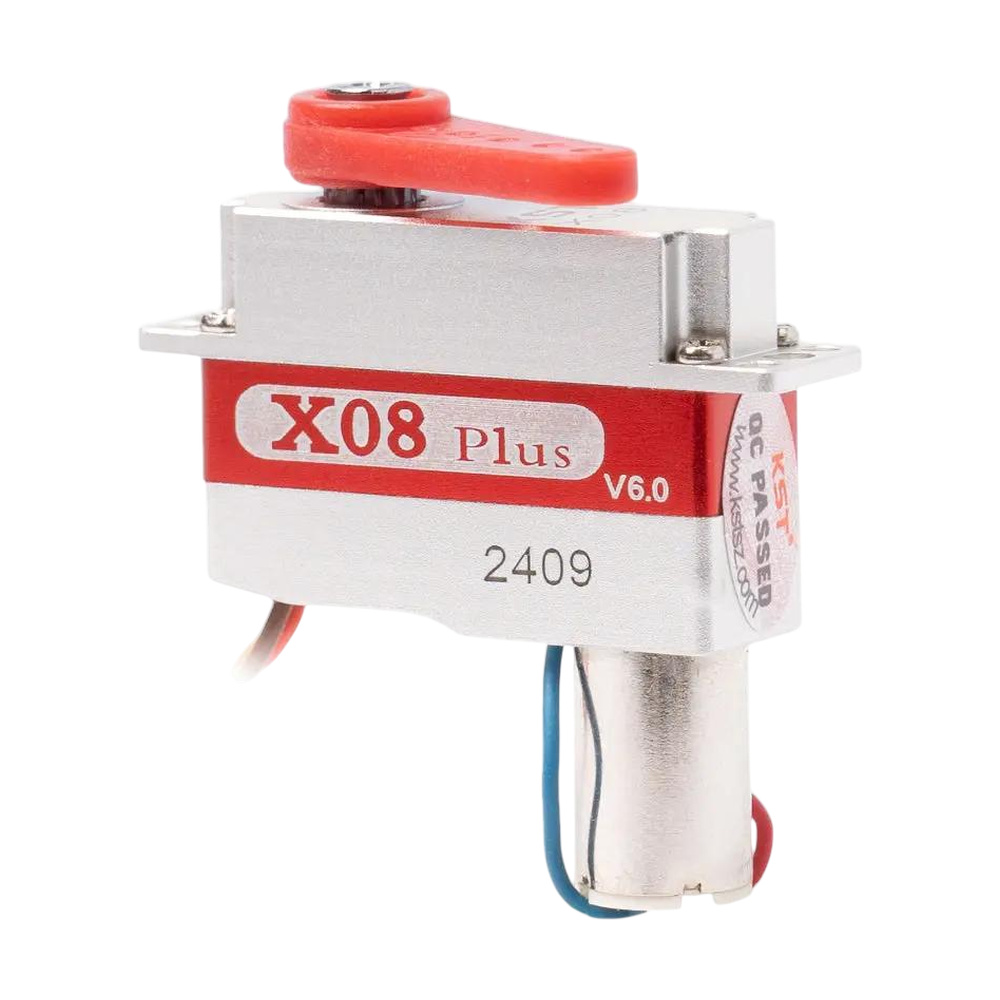

KST X08 Plus V6.0 is a lightweight micro servo with a thickness of only 8mm. The servo is suitable for thin wings and other control surfaces. It is mainly used as an aileron servo in gliders in the F5J, F5D and F3J categories, in fast electric and pylon racing models, and in EDF models. Compared to the basic KST X08, it has a more powerful motor and redesigned gears with minimal backlash.
It is powered by a coreless motor. Hardened steel gears are complemented by two ball bearings. The aluminium alloy case dissipates heat effectively. The servo weighs 9g. It operates within a 3.8-8.4V range, corresponding to a 1S to 2S LiPo battery. At 8.4V, it delivers 5.3kg-cm of torque and a speed of 0.09s/60°.
The default travel is 120° (±60° at a 1000-2000uS signal). The KST Tool #5 programming card (sold separately) can be used to set the centre, endpoints, rotation direction and smooth start (“soft start”).
Key Features
- Power supply: 3.8-8.4V (1-2S LiPo, nominal 7.4V)
- Speed: 0.18s/60° (3.8V), 0.15s/60° (6V), 0.12s/60° (7.4V), 0.09s/60° (8.4V)
- Torque: 2.4kg-cm (3.8V), 3.85kg-cm (6V), 4.85kg-cm (7.4V), 5.3kg-cm (8.4V)
- Gears: Metal (hardened steel)
- Travel: 120° (±60°, 1000-2000uS)
- Operating frequency: 333Hz
- Pulse range: 900-2100uS
- Motor: Coreless
- Bearings: 2x ball bearings
- Case: Aluminium alloy
- Position sensor: Potentiometer
- Programmable: Yes (centre, endpoints, direction, soft start)
- Shaft: 15T, 4mm
- Dimensions: 23.5x8x16.8 mm
- Weight: 9g
- Operating temperature: -10 to +65°C
Package Includes
- 1x Servo
- 1x Servo horn set (4x plastic horn)
- 1x Screw set (4x mounting screw, 1x horn screw)
