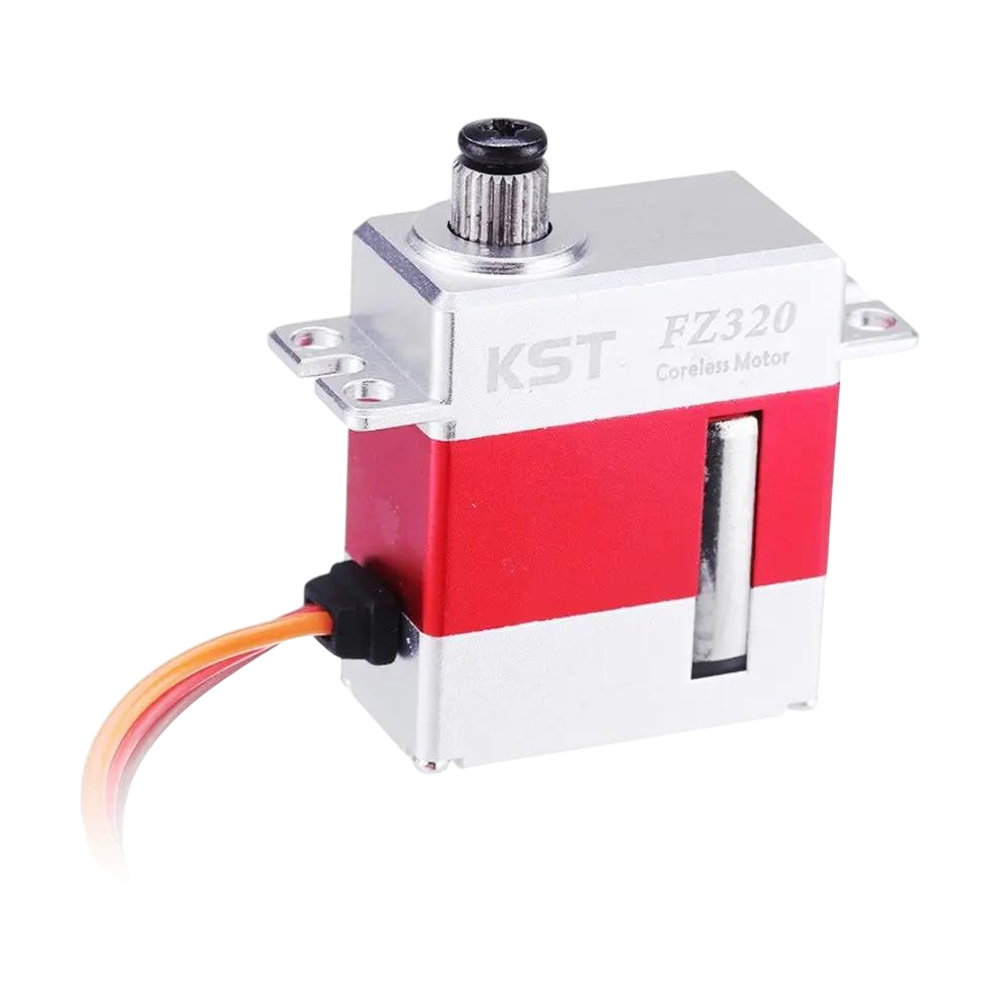

KST FZ320 is a fast HV servo with metal gears, suitable for RC gliders and jet models (“jets”). The gears are precise and backlash-free. Low electromagnetic emission (“low EMF”) technology reduces the risk of interference with other electronics in the model.
It is powered by a coreless motor. The hardened steel gears are supported by two ball bearings. The machined (CNC) aluminium alloy case is strong and lightweight. The servo weighs 20g. It operates from 6-8.4V, making it suitable for 2S LiPo power. At 7.4V, it delivers 5.5kg-cm of torque and a speed of 0.09s/60°. Resolution is better than 2uS.
With a standard 1000-2000uS signal, it has a travel of 100° (±50°), while in the extended 500-2500uS range it reaches up to 200° (±100°). The connection cable has a 26AWG cross-section.
Key Features
- Power supply: 6-8.4V (2S LiPo, nominal 7.4V)
- Speed: 0.10s/60° (6V), 0.09s/60° (7.4V)
- Torque: 4.5kg-cm (6V), 5.5kg-cm (7.4V)
- Gears: Metal (hardened steel)
- Travel: 100° (±50°, 1000-2000uS), 200° (±100°, 500-2500uS)
- Operating frequency: 333Hz
- Pulse range: 500-2500uS
- Resolution: <2uS
- Motor: Coreless
- Bearings: 2x ball bearings
- Case: Aluminium alloy (CNC)
- Position sensor: Potentiometer
- Cable: 26AWG
- Output shaft: 25T
- Dimensions: 23x12x27.5 mm
- Weight: 20g
- Operating temperature: -20 to +65°C
Package Includes
- 1x Servo
- 1x Accessory set
