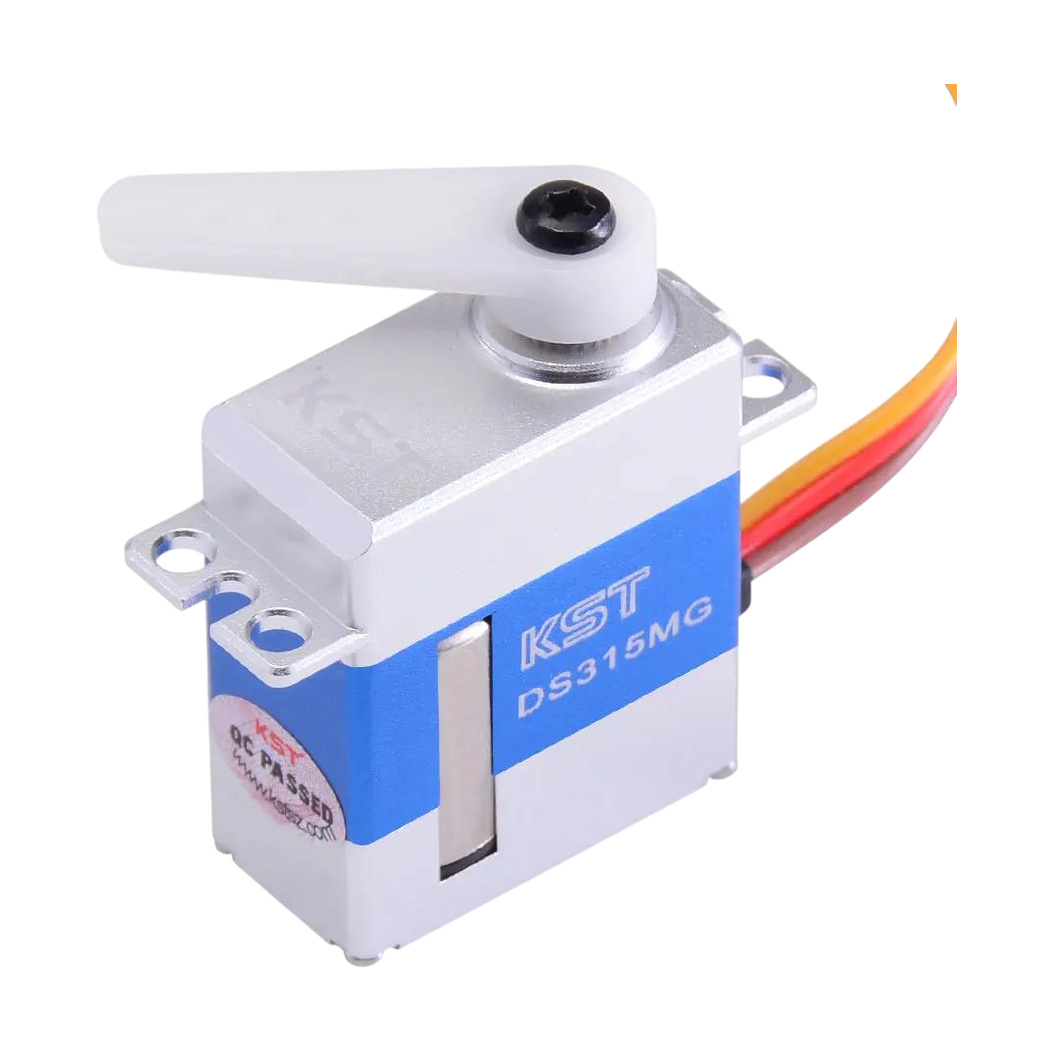

KST DS315MG V8.0 is a very fast mini servo with metal gears, suitable as a cyclic servo for flybarless helicopters in the 450-480 class. It offers high speed with good torque.
It is powered by a 12mm coreless motor. The hardened steel gears are supported by two ball bearings. The machined (CNC) aluminum alloy case dissipates heat effectively. The servo weighs 20g. It operates on 4.8-8.4V, from 4S NiMH to 2S LiPo. At 8.4V, it delivers 4.8kg-cm of torque and a speed of 0.07s/60°.
The default travel is 140° (±70° at a 800-2200uS signal); in the standard 1000-2000uS range, it is ±50°. The KST Tool #5 programming card (sold separately) allows adjustment of the center position, endpoints, rotation direction, and smooth startup (“soft start”).
Key Features
- Power supply: 4.8-8.4V (4S NiMH to 2S LiPo, nominal 6V)
- Speed: 0.10s/60° (4.8V), 0.09s/60° (6V), 0.08s/60° (7.4V), 0.07s/60° (8.4V)
- Torque: 2.8kg-cm (4.8V), 3.5kg-cm (6V), 4.3kg-cm (7.4V), 4.8kg-cm (8.4V)
- Gears: Metal (hardened steel)
- Travel: 140° (±70°, 800-2200uS), 100° (±50°, 1000-2000uS)
- Operating frequency: 333Hz
- Pulse range: 800-2200uS
- Motor: Coreless, 12mm
- Bearings: 2x ball bearings
- Case: Aluminum alloy (CNC)
- Position sensor: Potentiometer
- Programmable: Yes (center, endpoints, direction, soft start)
- Output shaft: 25T, 5mm
- Dimensions: 23x12x27.5 mm
- Weight: 20g
- Operating temperature: -20 to +65°C
Package Includes
- 1x Servo
- 1x Servo horn set (3x plastic servo horn)
- 1x Screw set (2x mounting screw, 1x servo horn screw)
