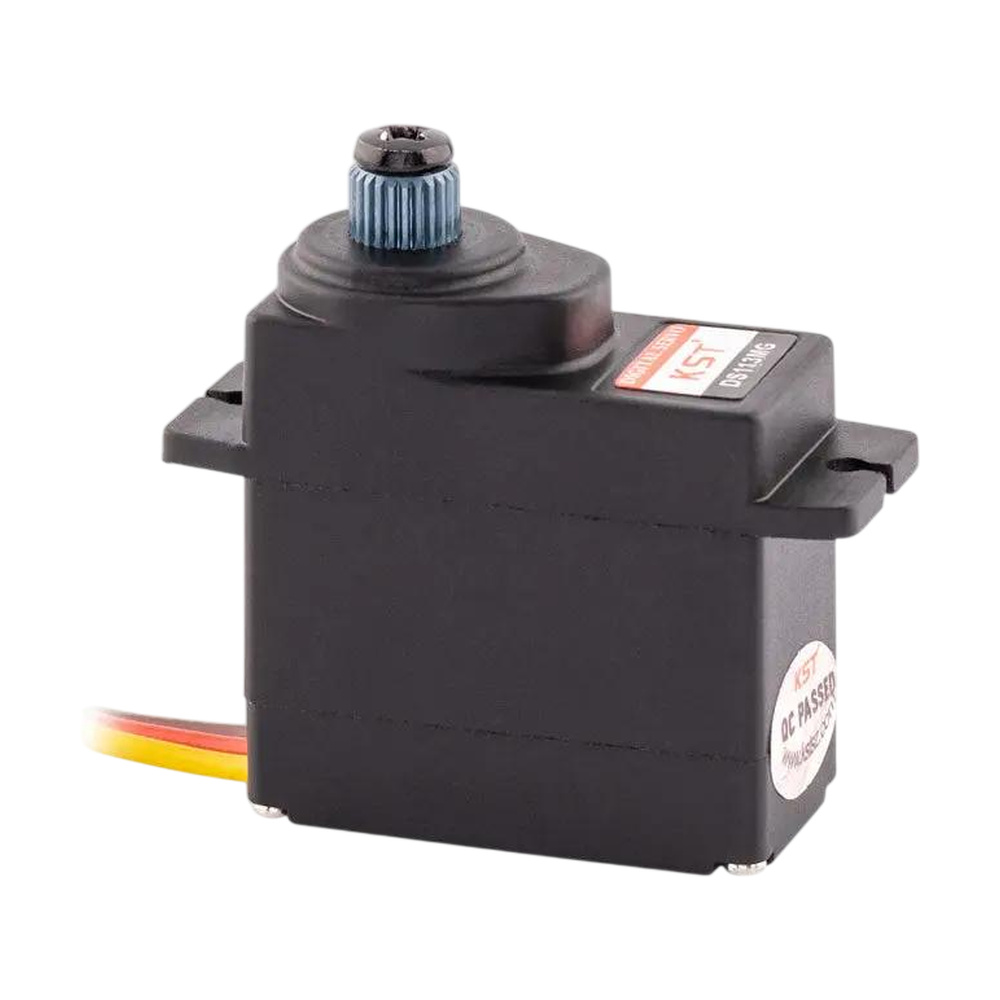

KST DS113MG V6.0 is a lightweight micro servo with metal gears, suitable for the fuselages of smaller electric RC aircraft and gliders. It is a high-voltage (HV) successor to the original DS113MG, so it is powered directly from a 2S LiPo or 2S LiFe battery without the need for a voltage regulator (BEC).
The servo weighs 12g. The case is plastic, with metal gears and one ball bearing. It is powered by a conventional cored motor. Operating voltage range is 4.8-8.4V. At 8.4V, it delivers 3.5kg-cm of torque and a speed of 0.09s/60°.
The default travel is 100° (±50° at a 1000-2000uS signal). The V6.0 version is now programmable. The KST Tool #5 programming card (sold separately) allows adjustment of the centre position, endpoints, rotation direction and smooth startup („soft start“).
Key Features
- Voltage: 4.8-8.4V (2S LiPo/LiFe, nominal 6V)
- Speed: 0.13s/60° (4.8V), 0.11s/60° (6V), 0.10s/60° (7.4V), 0.09s/60° (8.4V)
- Torque: 2kg-cm (4.8V), 2.5kg-cm (6V), 3kg-cm (7.4V), 3.5kg-cm (8.4V)
- Gears: Metal
- Travel: 100° (±50°, 1000-2000uS)
- Operating frequency: 333Hz
- Pulse range: 1000-2000uS
- Stall current: 1A (4.8V), 1.2A (6V), 1.4A (7.4V), 1.6A (8.4V)
- Motor: Cored
- Bearings: 1x ball bearing
- Case: Plastic
- Position sensor: Potentiometer
- Programmable: Yes (centre, endpoints, direction, soft start)
- Output shaft: 25T, 5mm
- Dimensions: 24x12x26.3 mm
- Weight: 12g
- Operating temperature: -10 to +65°C
Package Includes
- 1x Servo
- 1x Servo horn set (3x plastic servo horn)
- 1x Screw set (4x mounting screw, 1x servo horn screw)
