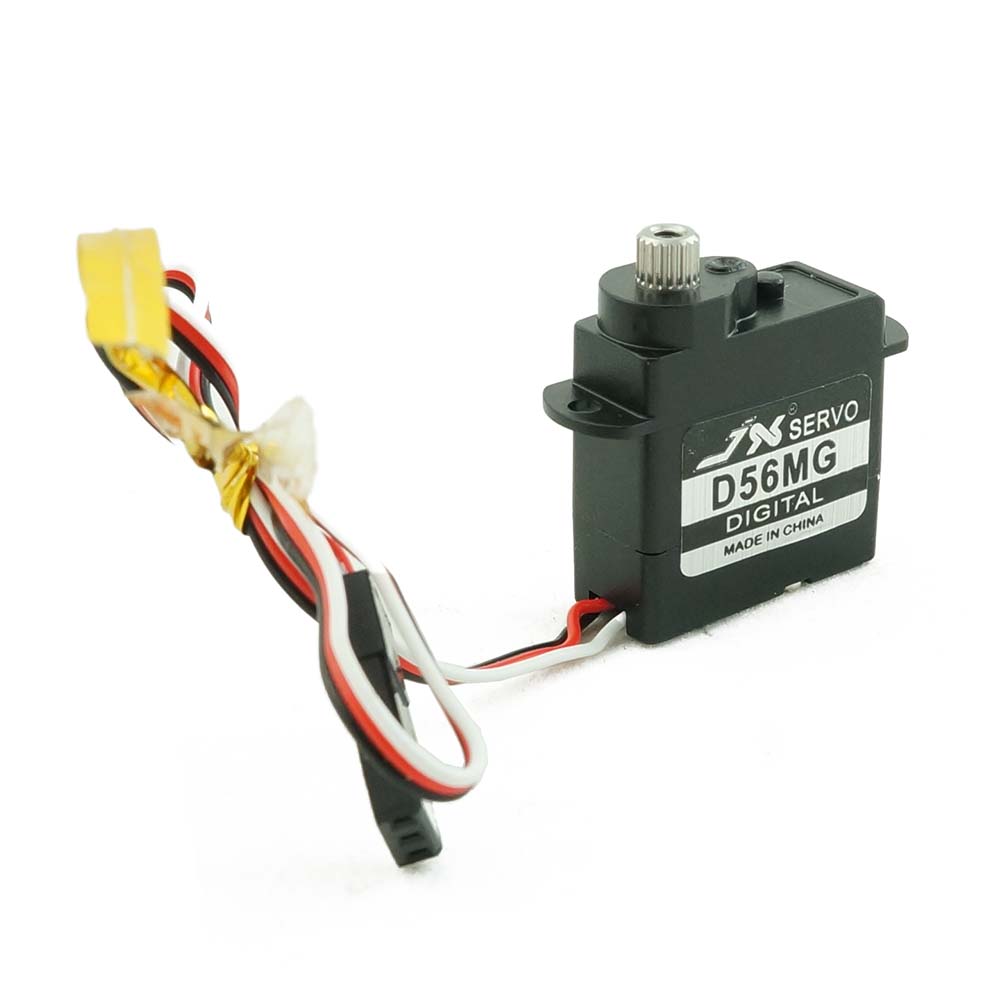

The JX Servo PDI-D56MG is a compact digital 5.6 gram servo designed for model airplanes and other RC projects. It features a lightweight coreless motor and metal gears. The servo can be powered with a voltage range of 3.7–5.5 V, making it suitable for use with a 1S LiPo battery.
Key Features

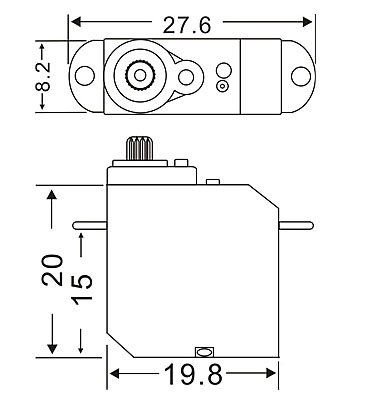

- Size: 19.8x8.2x20mm
- Weight: 5.6g
- Power supply: 3.7-5.5V
- Gears: Metal
- Deadband: 1uS
- Operating frequency: 1520uS/330Hz
- Type: Digital
- Angle: 90° (1000-2000uS)
- Torque: 0.58kg-cm (3.7V), 0.7kg-cm (4.2V), 0.89kg-cm (5.5V)
- Speed: ≤0.13sec / 60° (3.7V), ≤0.12sec / 60° (4.2V), ≤0.1sec / 60° (5.5V)
- Cable: JR 150mm
- Shaft: 25T
Package Includes
- 1x Servo
- 1x Lever Set
