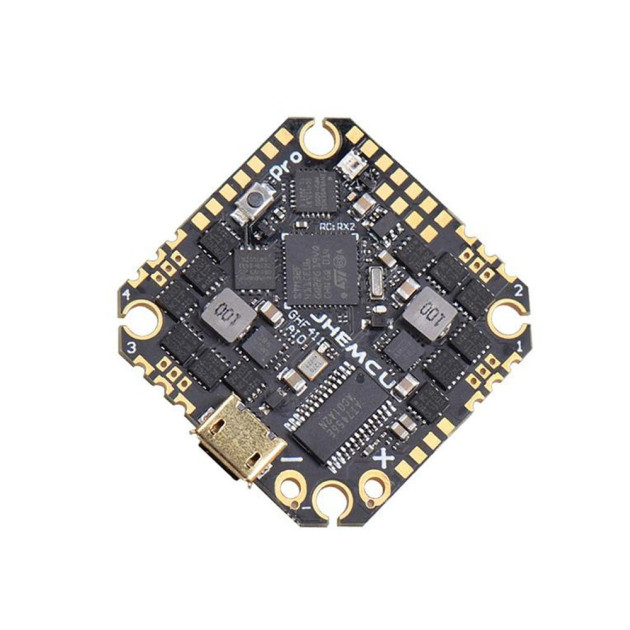

Jhemcu GHF411 AIO 35A
Discontinued
€ 93,00
GHF411 AIO is a toothpick board not only for small drones. The board contains a control unit with an F4 processor and ESC, which can handle a load of up to 35A. However, we recommend using motors no larger than 2204. The board supports 2-6S power and can be used on ultra-light drones from 3" to 5".
Key Features
- Power supply: 2-6S
- Maximum current: 35A
- Size: 32.5x32.5mm
- Mounting holes: 25.5x25.5mm
- Weight: 7.3g
- BEC Output: 9V@2A & 5V@2.5A
- Blackbox: 8MB
- Processor: STM32F411CEU6
- Firmware FC: flywoof411
- ESC firmware: BlHeli_S
Package Includes
- 1x Control unit
- 2x Power cable
- 1x XT60
- 4x Softmount
- 4x Connector for 1.25mm motors
