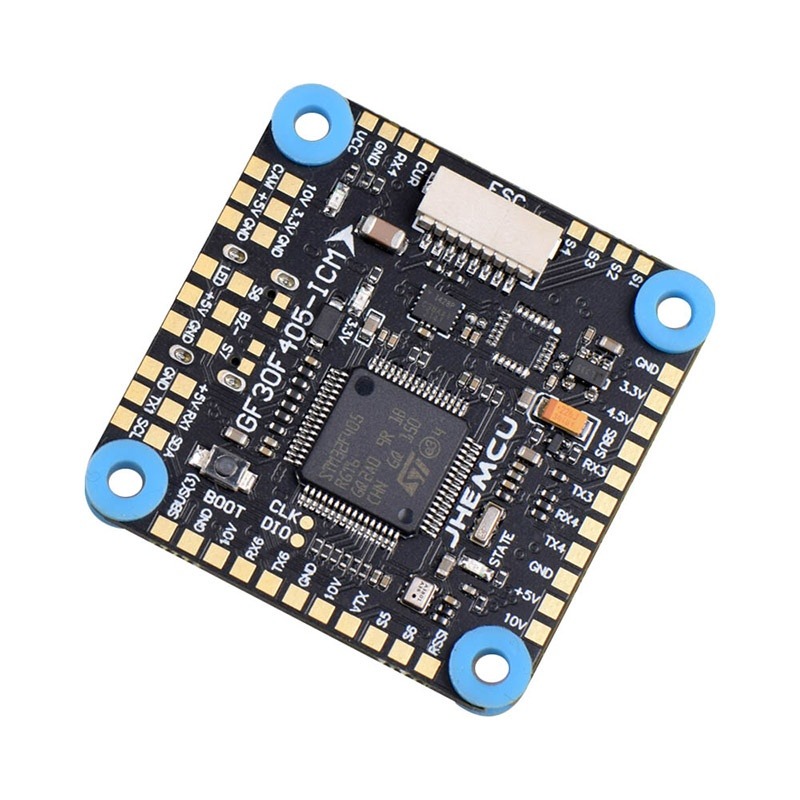

Jhemcu GF30F405 is an affordable flight controller with a mounting hole spacing of 30.5x30.5mm. The board is mainly suitable for freestyle and long-range 3-8S Lipo powered drones. The core is the F405 processor combined with the ICM-42688-P gyroscope. The board also features an integrated SPL06 barometer for altitude measurement and 16MB memory for blackbox. The board is equipped with a chip for analog OSD. It has 4 UARTs, I2C pads, 5V/3A BEC, and 10V/2A BEC.
Key Features
- Input voltage: 3–8S LiPo (11–36 V)
- Processor (MCU): STM32F405RGT6
- Gyroscope: ICM-42688-P
- Mounting holes: 30.5 × 30.5 mm
- Firmware: Betaflight JHEF405pro / INAV 6.1.0 JHEMCUF405
- Blackbox: 16MB
- Barometer: SPL06
- OSD: yes
- Connector: USB-C
- I2C: yes
- UART ports: 4
- BEC: 5 V/3A and 10V/2A
- Size: 36x36mm
- Weight: 8.7 g
Package Includes
- 1× Flight controller
- 1× 8-pin jumper cable
- 4× M3 softmount
