iFlight PD100W USB adapter

In Stock
€ 27,59

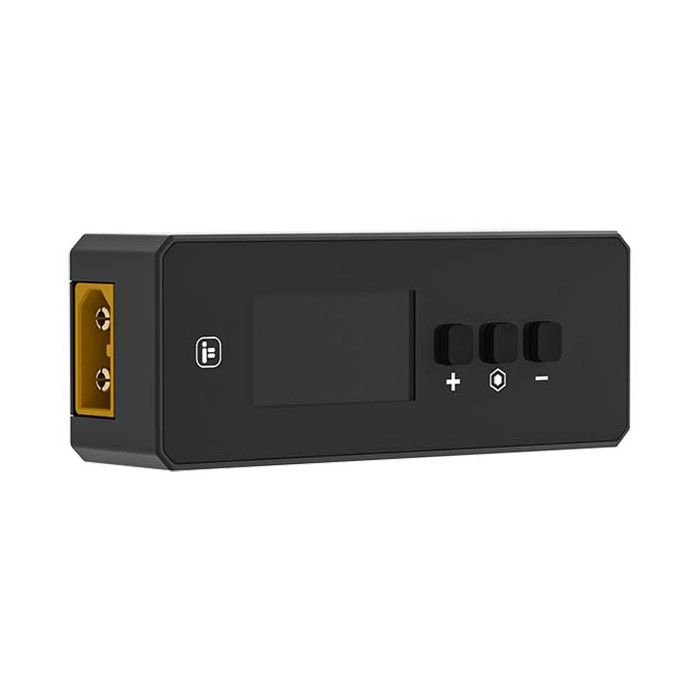

The iFlight PD100W is a USB-A and USB-C power source with a DC input and an XT60 connector. It provides a USB-C output with a maximum power of 100 W and a USB-A output with up to 60 W. The input features an XT60 connector for easy connection to 2–6S LiPo batteries (7.4–30 V). The adapter supports PD100W output and various charging protocols for broad compatibility. It is suitable for powering soldering irons, chargers, phones, action cameras, RC transmitters, and other accessories. Thanks to its compact size and DC input, it is ideal for travel. The circuit is equipped with protection features against overvoltage, undervoltage, overcurrent, and overheating. The adapter also features a full-color TFT display.

Key Features

  • Size: 72x27.5x20mm
  • Weight: 48g
  • Input voltage: 7.4-30V (2-6S)
  • USB-C output:  3.3V-15V/3A, 20V/5A (100W Max)
  • USB-A output: 4.5V/5A, 5V/4.5A, 9V-20V/3A (60W Max)
  • Combined output  C+A: 5V/4.8A (24W Max)
  • Supported protocols - USB-C: PPS, PD3.0, QC4+,QC3.0, AFC, FCP, SCP,PE2.0,SFCP
  • Supported Protocols - USB-A: QC3.0, AFC, FCP, SCP,PE2.0,SFCP

Package Includes

  • 1x Adapter
